6AG14115AB102AA0

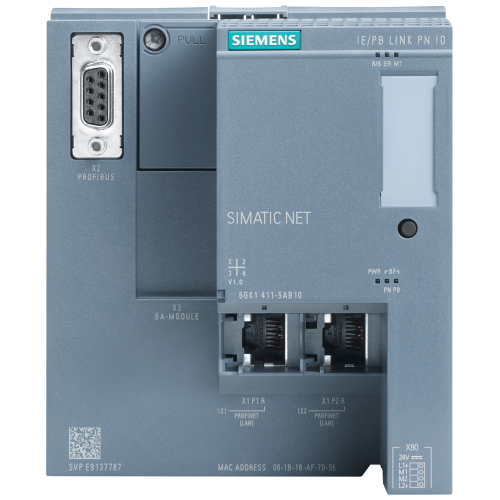

IE/PB LINK PN IO, gateway between IE and PROFIBUS, with PN IO functionality

Manufacturer's No: 6AG1411-5AB10-2AA0     Manufacturer: Siemens
IE/PB LINK PN IO, gateway between IE and PROFIBUS, with PN IO functionality

Availability On Request

£3,609.00
  • Model: SIPLUS NET IE/PB Link PN IO (6GK1411-5AB10)
  • Operating Temperature: -40°C to +60°C
  • Conformal coating for added protection
  • Gateway between Industrial Ethernet and PROFIBUS
  • Supports PROFINET IO functionality, S7 routing, and data record routing
  • Fast Ethernet speed: 10/100 Mbps
  • PROFIBUS speed: 9.6 Kbit/s up to 12 Mbps
  • Features MRP (Media Redundancy Protocol)
  • Supports NTP (Network Time Protocol)


Product

Manufacturer Material ID -
6AG1411-5AB10-2AA0
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

Number of HW-interfaces industrial Ethernet -
-
Transmission rate -
- kiloBit/second
Category according to EN 954-1 -
UN
Number of interfaces PROFINET -
-
Performance level acc. EN ISO 13849-1 -
UN
Type of data transmission -
UN
SIL according to IEC 61508 -
UN
Depth -
74 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
117 Millimetre
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Redundancy -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Width -
100 Millimetre

Availability On Request

£3,609.00
