6AG15101SJ012AB0

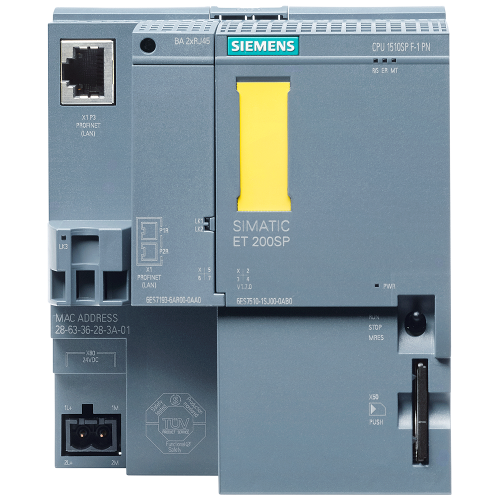

SIPLUS ET 200SP CPU 1510SP F-1PN -25...+60 °C Start-up -25 °C with conformal coating Based on: 6ES

Manufacturer's No: 6AG1510-1SJ01-2AB0     Manufacturer: Siemens
SIPLUS ET 200SP CPU 1510SP F-1PN -25...+60 °C Start-up -25 °C with conformal coating Based on: 6ES

Availability On Request

POA

This product has been superseded by

6AG15101SK032AB0

Please check compatibility before purchasing.

  • SIPLUS ET 200SP CPU 1510SP F-1PN - Temperature range: -25°C to +60°C - Start-up at -25°C with conformal coating - Work memory: 150 KB for program, 750 KB for data - 1st interface: PROFINET IRT with 3-port switch, 72 ns bit performance - Requires SIMATIC Memory Card and Bus Adapter for Port 1 and 2

  • Modular, scalable, and flexible distributed I/O system - Small footprint, ideal for installation in small control boxes near machines - Expandable with up to 64 I/O modules in any combination - Offers a wide range of modules with different functionalities - Easy application with tool-free wiring and channel-precise diagnostic functions - Supports hot swapping for module and terminal box replacement during operation

  • SIPLUS extreme components designed for challenging environments - Suitable for distributed control boxes without air-conditioning/heating - Protects against corrosive gases, humidity, frost, and physical substances - Ensures machine availability and productivity - Requires SIMATIC Memory Card for operation

Accessories

Follow-up article

Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6AG1510-1SJ01-2AB0
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Category according to EN 954-1 -
UN
Output voltage at AC 50 Hz -
- Volt
Output voltage at AC 60 Hz -
- Volt
Output voltage at DC -
- Volt
Input voltage at AC 50 Hz -
- Volt
Input voltage at AC 60 Hz -
- Volt
Max. output current AC 50 Hz -
- Ampere
Max. output current AC 60 Hz -
- Ampere
Max. output current DC -
- Ampere
Max. input current AC 50 Hz -
- Ampere
Max. input current AC 60 Hz -
- Ampere
Performance level acc. EN ISO 13849-1 -
UN
Type of output voltage -
UN
With bus coupler for modular station connection -
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
1
Type of electric connection -
Screw-/spring clamp connection
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Bus coupler for modular station connection available -
Degree of protection (IP rating) -
IP20
Depth -
75 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible -
Height -
117 Millimetre
Input voltage at DC -
19.2 Volt
Max. input current DC -
0.9 Ampere
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of slots -
80
Rail mounting possible -
Suitable for safety functions -
Supporting protocol for ASI -
Supporting protocol for MODBUS -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
System accessory -
Type of voltage (input voltage) -
DC
Wall mounting/direct mounting -
Width -
100 Millimetre
With pluggable modules, analogue I/O -
With pluggable modules, central modules -
With pluggable modules, communication modules -
With pluggable modules, digital I/O -
With pluggable modules, function and technology modules -
With pluggable modules, others -
-
- SIPLUS ET 200SP CPU 1510SP F-1PN - Temperature range: -25°C to +60°C - Start-up at -25°C with conformal coating - Work memory: 150 KB for program, 750 KB for data - 1st interface: PROFINET IRT with 3-port switch, 72 ns bit performance - Requires SIMATIC Memory Card and Bus Adapter for Port 1 and 2 - Modular, scalable, and flexible distributed I/O system - Small footprint, ideal for installation in small control boxes near machines - Expandable with up to 64 I/O modules in any combination - Offers a wide range of modules with different functionalities - Easy application with tool-free wiring and channel-precise diagnostic functions - Supports hot swapping for module and terminal box replacement during operation - SIPLUS extreme components designed for challenging environments - Suitable for distributed control boxes without air-conditioning/heating - Protects against corrosive gases, humidity, frost, and physical substances - Ensures machine availability and productivity - Requires SIMATIC Memory Card for operation
