6AG15163FN012AB0

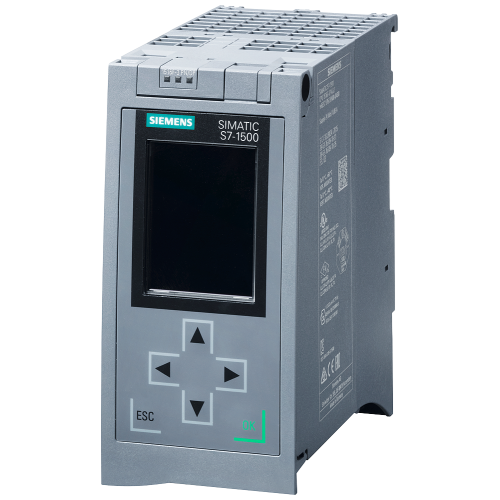

SIPLUS S7-1500 CPU-1516F-3 PN/DP -25...+60°C start up -20 °C with conformal coating based on 6ES7516-3FN01-0AB0. Central p

Manufacturer's No: 6AG1516-3FN01-2AB0     Manufacturer: Siemens
SIPLUS S7-1500 CPU-1516F-3 PN/DP -25...+60°C start up -20 °C with conformal coating based on 6ES7516-3FN01-0AB0. Central processing unit with RAM 1.5 MB for program and 5 MB for data, 1st interface:

Availability On Request

POA

This product has been superseded by

6AG15163FP032AB0

Please check compatibility before purchasing.

  • Model: SIPLUS S7-1500 CPU-1516F-3 PN/DP
  • Temperature Range: -25°C to +60°C (start up at -20°C with conformal coating)
  • RAM: 1.5 MB for program, 5 MB for data
  • End of Product Lifecycle: 01/03/22
  • Successor Model: 6AG1516-3FP03-2AB0


Product

Manufacturer Material ID -
6AG1516-3FN01-2AB0
Net Weight -
0.94kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

Category according to EN 954-1 -
UN
Max. number of time switches -
-
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Width -
70 Millimetre
Model -
Modular
Height -
147 Millimetre
Depth -
129 Millimetre
With display -
Suitable for safety functions -
Number of digital inputs -
0
Number of digital outputs -
0
Number of analogue inputs -
0
Number of analogue outputs -
0
Voltage type of supply voltage -
DC
Type of memory -
Other
Memory size -
6500 kiloByte (1000 Byte)
Processing time (1K, binary operation) -
0.01 Millisecond
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Supporting protocol for TCP/IP -
Supporting protocol for PROFIBUS -
Supporting protocol for MODBUS -
Rail mounting possible -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
System accessory -
Number of interfaces PROFINET -
2
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Performance level acc. EN ISO 13849-1 -
Level e
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supply voltage DC -
19.2 Volt
SIL according to IEC 61508 -
3

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

6AG15163FP032AB0

Please check compatibility before purchasing.
