6AG15411AB007AB0

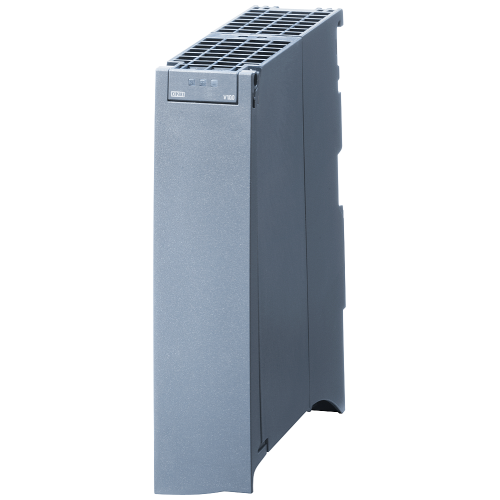

SIPLUS S7-1500 CM PtP RS 422 / 485 HF -40 ... +70 °C Startup -25 °C with conformal coating based on 6ES7541-1AB00-0AB0

Manufacturer's No: 6AG1541-1AB00-7AB0     Manufacturer: Siemens
SIPLUS S7-1500 CM PtP RS 422 / 485 HF -40 ... +70 °C Startup -25 °C with conformal coating based on 6ES7541-1AB00-0AB0

View 3D

Availability Back Order

£1,879.00
  • Model: SIPLUS S7-1500 CM PTP RS-422/485 (6ES7541-1AB00-0AB0)
  • Temperature Range: -40°C to +70°C (start up at -25°C)
  • Communication: RS-422 and RS-485
  • Protocols: Freeport, 3964 (R), USS, MODBUS RTU
  • Data Rate: 115200 Kbit/s
  • Connector: 15-Pin D-sub socket
  • Features: Conformal coating for protection

Mandatory additional product

Accessories

Spare part



Product

Manufacturer Material ID -
6AG1541-1AB00-7AB0
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Number of interfaces PROFINET -
0
Transmission rate -
115.2 kiloBit/second
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Depth -
127 Millimetre
Explosion safety category for dust -
None
Height -
147 Millimetre
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Type of data transmission -
Serial
Width -
35 Millimetre
With potential separation -

Availability Back Order

£1,879.00
