6AG16470AA112AX0

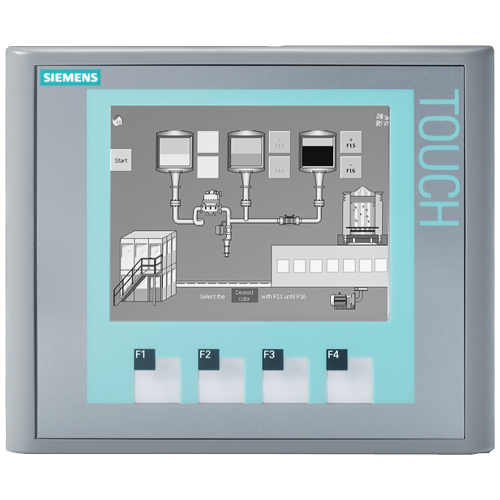

SIPLUS HMI KTP400 Basic mono PN -10...+60 °C with conformal coating based on 6AV6647-0AA11-3AX0 dis

Manufacturer's No: 6AG1647-0AA11-2AX0     Manufacturer: Siemens
SIPLUS HMI KTP400 Basic mono PN -10...+60 °C with conformal coating based on 6AV6647-0AA11-3AX0 dis

Availability On Request

POA

This product has been superseded by

6AG11232DB032AX0

Please check compatibility before purchasing.

  • SIPLUS HMI KTP400 Basic mono PN
  • Temperature range: -10 to +60°C
  • Conformal coating
  • End of product lifecycle: 16/04/24
  • Successor: 6AG1123-2DB03-2AX0 (partially compatible)


Product

Manufacturer Material ID -
6AG1647-0AA11-2AX0
Net Weight -
0.51kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
UNSPSC -
32151705

Technical Specification

Number of colours of the display -
-
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Touch technology -
UN
Degree of protection (NEMA), front side -
UN
Built-in depth -
40 Millimetre
Screen diagonal -
3.8 inch
Operation temperature -
-10 Degrees celsius
Voltage type of supply voltage -
DC
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Supporting protocol for TCP/IP -
Supporting protocol for MODBUS -
Number of pixels, horizontal -
320
Number of pixels, vertical -
240
Number of function buttons, programmable -
4
With numeric keyboard -
With alpha numeric keyboard -
Useful project memory/user memory -
512 kiloByte (1000 Byte)
With message indication -
With message system (incl. buffer and confirmation) -
Process value representation (output) possible -
Process default value (input) possible -
With recipes -
Number of password levels -
50
Number of online languages -
5
Degree of protection (IP), front side -
IP65
Width of the front -
140 Millimetre
Height of the front -
116 Millimetre
Number of interfaces PROFINET -
1
Number of HW-interfaces Wireless -
0
Supporting protocol for EtherNet/IP -
Supply voltage DC -
19.2 Volt
Type of display -
STN
Number of grey-scales/blue-scales of display -
4
Number of buttons with LED -
0
Number of system buttons -
0
-
- SIPLUS HMI KTP400 Basic mono PN - Temperature range: -10 to +60°C - Conformal coating - End of product lifecycle: 16/04/24 - Successor: 6AG1123-2DB03-2AX0 (partially compatible)

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

6AG11232DB032AX0

Please check compatibility before purchasing.
