6AG16772DB402GB0

SIPLUS ET 200SP CPU 1515SP PC2 L

Manufacturer's No: 6AG1677-2DB40-2GB0     Manufacturer: Siemens

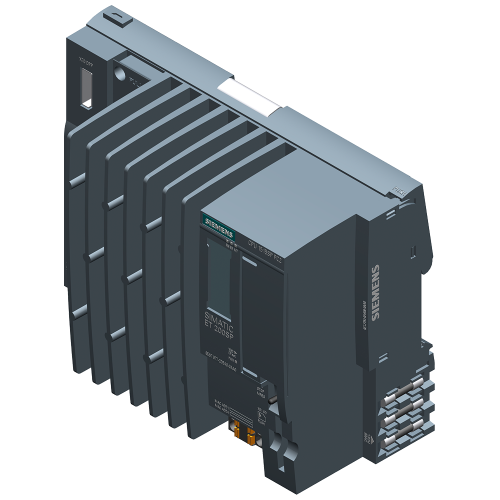

SIPLUS ET 200SP CPU 1515SP PC2 L

Availability On Request

POA
  • SIPLUS ET 200SP CPU 1515SP PC2 L with conformal coating
  • Operating temperature range: -40°C to +60°C
  • 8 GB RAM, 128 GB CFast storage
  • Ready4Linux operating system
  • S7-1500 software controller CPU 1505SP preinstalled
  • Interfaces: 1x CFast slot, 1x SD/MMC slot, 1x ET 200SP BusAdapter PROFINET connection, 1x 10/100/1000 Mbps Ethernet, 2x USB 3.0, 2x USB 2.0, 1x DisplayPort
  • Documentation provided on USB flash drive
Product video
Product video


Product

Manufacturer Material ID -
6AG1677-2DB40-2GB0
Net Weight -
0.83kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5A992
UNSPSC -
32151705

Technical Specification

Bus coupler for modular station connection available -
Degree of protection (IP rating) -
IP20
Depth -
75 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible -
Height -
117 Millimetre
Input voltage at DC -
19.2 Volt
Max. input current DC -
2.9 Ampere
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
4
Number of HW-interfaces Wireless -
0
Number of slots -
64
Rail mounting possible -
Supporting protocol for MODBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
System accessory -
Type of voltage (input voltage) -
DC
Wall mounting/direct mounting -
Width -
160 Millimetre
With integrated power supply -
With pluggable modules, analogue I/O -
With pluggable modules, central modules -
With pluggable modules, communication modules -
With pluggable modules, digital I/O -
With pluggable modules, function and technology modules -
With pluggable modules, others -
