6AG16883EH472AX0

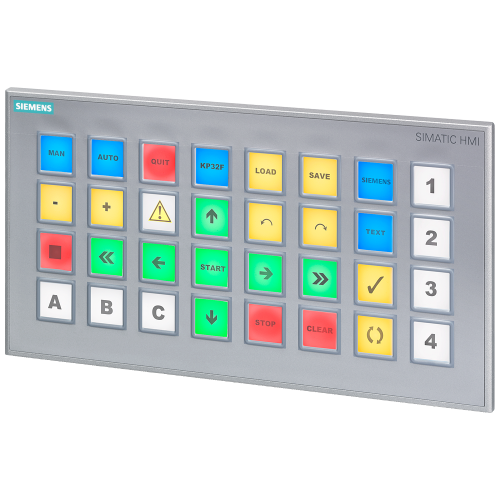

SIPLUS HMI KP32F PN

Manufacturer's No: 6AG1688-3EH47-2AX0     Manufacturer: Siemens
SIPLUS HMI KP32F PN

Availability On Request

£3,163.00
  • Model: SIPLUS HMI KP32F PN (6AV3688-3EH47-0AX0)
  • Operating Temperature: -20°C to +55°C
  • Features: Key Panel with 32 short-stroke keys and multi-colored LEDs
  • Interfaces: PROFINET with PROFIsafe
  • Inputs: 16 DI, 16 DI/DQ, 4 safety DI pins
  • Power Supply: 24 V DC, loop-through capable
  • Programmable with STEP 7 V5.5


Product

Manufacturer Material ID -
6AG1688-3EH47-2AX0
Net Weight -
1.91kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
UNSPSC -
39122221

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Built-in depth -
69 Millimetre
Operation temperature -
-20 Degrees celsius
Number of build in positions for control circuit devices -
0
Number of interfaces PROFINET -
2
Front build in possible -
Degree of protection (IP), front side -
IP65
Front built-in possible -
Height of the front -
155 Millimetre
Number of built-in positions for control circuit devices -
0
Number of buttons -
32
Number of digital inputs -
32
Number of digital outputs -
16
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of indicator lamps -
8
Number of LED colour modes -
5
Operating temperature -
-20 Degrees celsius
Recess depth -
69 Millimetre
Suitable for safety functions -
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Voltage type of supply voltage -
DC
Width of the front -
295 Millimetre
With parameterizable buttons -
With test for buttons and indicator lamps -

Availability On Request

£3,163.00
