6AG21240QC131AX0

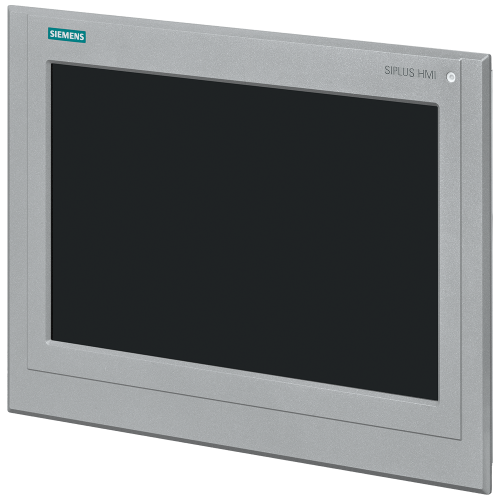

SIPLUS HMI TP1500 Outdoor T1 RAIL

Manufacturer's No: 6AG2124-0QC13-1AX0     Manufacturer: Siemens
SIPLUS HMI TP1500 Outdoor T1 RAIL

Availability On Request

£10,991.00
  • SIPLUS HMI TP1500 outdoor rail
  • 15" widescreen TFT display with 16 million colors
  • Operating temperature: -30°C to +60°C (up to +70°C for 10 minutes)
  • Conformal coating for protection
  • Touch operation feature
  • PROFINET interface
  • MPI/PROFIBUS DP interface
  • 12 MB configuration memory
  • Windows CE 6.0 operating system
  • Configurable with WinCC Comfort V13 SP1 and higher


Product

Manufacturer Material ID -
6AG2124-0QC13-1AX0
Net Weight -
4.00kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Degree of protection (NEMA), front side -
UN
Built-in depth -
77 Millimetre
Operation temperature -
-30 Degrees celsius
With printer output -
Number of interfaces PROFINET -
2
Type of display -
TFT
Additional software components, loadable -
Degree of protection (IP), front side -
IP66
Height of the front -
310 Millimetre
Number of buttons with LED -
0
Number of colours of the display -
16777216
Number of function buttons, programmable -
0
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
2
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of password levels -
50
Number of pixels, horizontal -
1280
Number of pixels, vertical -
800
Number of system buttons -
0
Operating temperature -
-30 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
77 Millimetre
Screen diagonal -
15.4 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
Touch technology -
Resistive touch
Useful project memory/user memory -
12000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
415 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability On Request

£10,991.00
