6AG21316BH014BA0

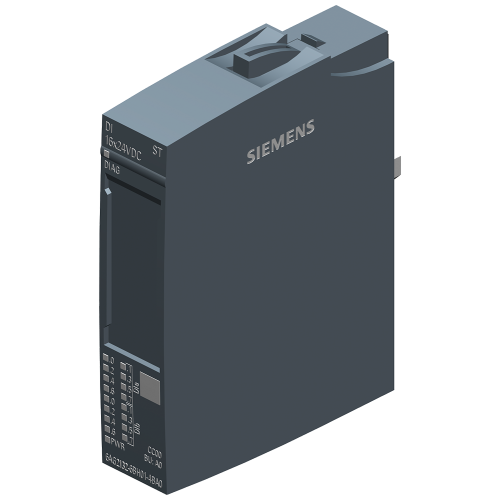

SIPLUS ET 200SP DI 16X24VDC ST TX RAIL -40…+70°C TX with 85°C for 10min with conformal coating based on 6ES7131-6BH01-0BA

Manufacturer's No: 6AG2131-6BH01-4BA0     Manufacturer: Siemens
SIPLUS ET 200SP DI 16X24VDC ST TX RAIL -40…+70°C TX with 85°C for 10min with conformal coating based on 6ES7131-6BH01-0BA0 . type 3 (IEC 61131), sink input, (PNP, P-reading), Packing unit: 1 Piece,

Availability On Request

£216.00
  • Model: SIPLUS ET 200SP DI 16x24VDC ST TX rail
  • Part Number: 6ES7131-6BH01-0BA0
  • Conformal coating for harsh environments
  • Temperature range: -40°C to +70°C, with short-term exposure up to +85°C
  • Digital input module with 16 channels
  • Input type: Sink input (PNP, sinking input)
  • Input delay: 0.05 to 20 ms
  • Module diagnostics for wire break and supply voltage issues
  • Suitable for BU type A0 applications
  • Color code: CC00

Mandatory additional product

Product video
Product video


Product

Manufacturer Material ID -
6AG2131-6BH01-4BA0
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
32151705

Technical Specification

Output current -
- Ampere
Explosion safety category for gas -
UN
Degree of protection (IP) -
UN
Category according to EN 954-1 -
UN
Number of interfaces PROFINET -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at output -
- Volt
Type of output voltage -
UN
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
0.05 Millisecond
Front build in possible -
Type of electric connection -
Plug-in connection
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP20
Depth -
58 Millimetre
Digital inputs configurable -
Fieldbus connection over separate bus coupler possible -
Height -
73 Millimetre
Input current at signal 1 -
2.5 Milliampere
Number of digital inputs -
16
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Permitted voltage at input -
-30 Volt
Rail mounting possible -
Supply voltage DC -
19.2 Volt
System accessory -
Time delay at signal change -
0.05 Millisecond
Type of digital output -
None
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
15 Millimetre

Availability On Request

£216.00
