6AG21555AA001AC0

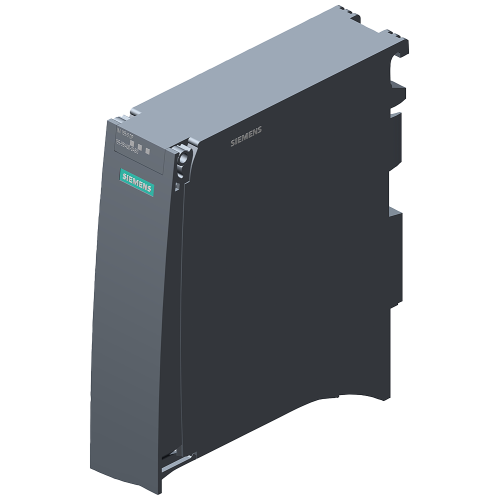

SIPLUS ET 200MP IM 155-5 PN HF T1 RAIL

Manufacturer's No: 6AG2155-5AA00-1AC0     Manufacturer: Siemens
SIPLUS ET 200MP IM 155-5 PN HF T1 RAIL

Availability On Request

£1,503.00
  • SIPLUS ET 200MP IM155-5 PN HF T1 rail based on 6ES7155-5AA00-0AC0
  • Conformal coating for -40°C to +60°C temperature range
  • OT1 with ST1/2 (+70°C for 10 minutes)
  • PROFINET IO device interface module for ET 200MP electronic modules
  • Supports up to 12 IO modules without additional power supply
  • Supports up to 30 IO modules with additional power supply
  • Integrated 2-port switch with RJ45 shared device
  • Features MRP and IRT >=0.25 ms
  • Isochronous mode FW update
  • IM0...3 and prioritized run-up

Mandatory additional product

Accessories

Spare part

Product video
Product video


Product

Manufacturer Material ID -
6AG2155-5AA00-1AC0
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
32151705

Technical Specification

Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP20
Front build in possible -
Degree of protection (IP rating) -
IP20
Depth -
129 Millimetre
Height -
147 Millimetre
Rail mounting possible -
Supply voltage DC -
19.2 Volt
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
System accessory -
Voltage type of supply voltage -
DC
Width -
35 Millimetre
With potential separation -

Availability On Request

£1,503.00
