6AG23330SB004AY0

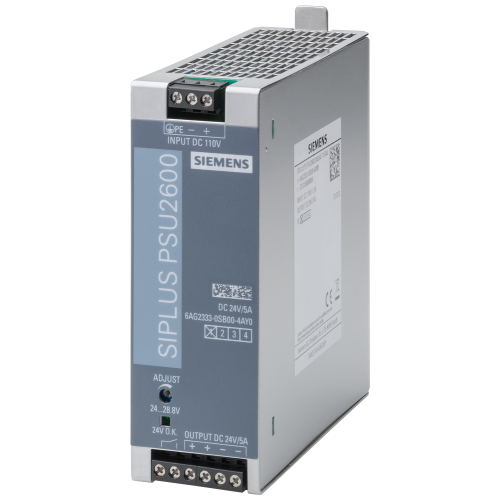

SIPLUS PS PSU2600 24V/5A TX rail input: 110 V DC, output: 24 V DC/5 A, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes)

Manufacturer's No: 6AG2333-0SB00-4AY0     Manufacturer: Siemens
SIPLUS PS PSU2600 24V/5A TX rail input: 110 V DC, output: 24 V DC/5 A, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes),

Availability On Request

£515.00
  • Input Voltage: 110 V DC
  • Output Voltage: 24 V DC
  • Output Current: 5 A
  • Temperature Range: -40°C to +70°C
  • Overtemperature Protection: OT4 with ST1/2 (up to +85°C for 10 minutes)


Product

Manufacturer Material ID -
6AG2333-0SB00-4AY0
Net Weight -
0.50kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
DE
UNSPSC -
39121004

Technical Specification

Power consumption -
- Voltampere
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
225 Millimetre
Built-in width -
42 Millimetre
Degree of protection (IP) -
IP20
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP20
Depth -
125 Millimetre
Height -
125 Millimetre
Max. output current 1 -
5 Ampere
Modular version -
Nominal value output current 1 -
5 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
120 Watt
Rail mounting possible -
Rated supply voltage at DC -
110 Volt
Recess height -
225 Millimetre
Recess width -
42 Millimetre
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Screw connection
Voltage type of supply voltage -
DC
Width -
42 Millimetre

Availability On Request

£515.00
