6AG25121DK011AB0

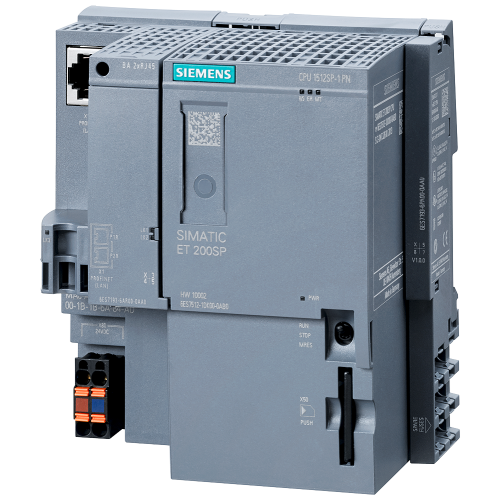

SIPLUS ET 200SP CPU 1512SP-1 PN -25 ... +60°C T1 with 70°C for 10 min with conformal coating based on 6ES7512-1DK01-0AB0.

Manufacturer's No: 6AG2512-1DK01-1AB0     Manufacturer: Siemens
SIPLUS ET 200SP CPU 1512SP-1 PN -25 ... +60°C T1 with 70°C for 10 min with conformal coating based on 6ES7512-1DK01-0AB0. Central processing unit with Work memory 200 KB for program and 1 MB for dat

View 3D

Availability Back Order

£1,911.00

This product has been superseded by

6AG25121DM031AB0

Please check compatibility before purchasing.

  • Model: SIPLUS ET 200SP CPU 1512SP-1 PN
  • Temperature Range: -40°C to +60°C (up to +70°C for 10 minutes)
  • Memory: 200 KB for program, 1 MB for data
  • Interface: PROFINET IRT with 3-port switch
  • Bit Performance: 48 ns
  • Additional Requirements: SIMATIC Memory Card, BusAdapter for port 1 and 2
  • Conformal coating for rugged environments

Selectable mandatory product

Accessories

Follow-up article

Product video
Product video


Product

Manufacturer Material ID -
6AG2512-1DK01-1AB0
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43201503

Technical Specification

Type of electric connection -
UN
Category according to EN 954-1 -
UN
Output voltage at AC 50 Hz -
- Volt
Output voltage at AC 60 Hz -
- Volt
Output voltage at DC -
- Volt
Input voltage at AC 50 Hz -
- Volt
Input voltage at AC 60 Hz -
- Volt
Max. output current AC 50 Hz -
- Ampere
Max. output current AC 60 Hz -
- Ampere
Max. output current DC -
- Ampere
Max. input current AC 50 Hz -
- Ampere
Max. input current AC 60 Hz -
- Ampere
Type of output voltage -
UN
With bus coupler for modular station connection -
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
1
Performance level acc. EN ISO 13849-1 -
None
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Bus coupler for modular station connection available -
Degree of protection (IP rating) -
IP20
Depth -
75 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible -
Height -
117 Millimetre
Input voltage at DC -
19.2 Volt
Max. input current DC -
0.9 Ampere
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of slots -
80
Rail mounting possible -
Supporting protocol for ASI -
Supporting protocol for MODBUS -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
System accessory -
Type of voltage (input voltage) -
DC
Wall mounting/direct mounting -
Width -
100 Millimetre
With optical interface -
With pluggable modules, analogue I/O -
With pluggable modules, central modules -
With pluggable modules, communication modules -
With pluggable modules, digital I/O -
With pluggable modules, function and technology modules -
With pluggable modules, others -

Availability Back Order

£1,911.00
Sign in or Register for customer prices.

This product has been superseded by

6AG25121DM031AB0

Please check compatibility before purchasing.
