6AG26470AH111AX0

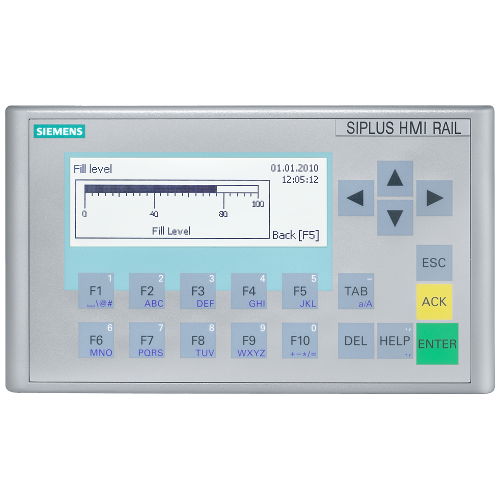

SIPLUS HMI KP300 Basic mono "3,6"" T1 RAIL -25 ... +55°C T1" at 70°C for 10 min with conformal coating

Manufacturer's No: 6AG2647-0AH11-1AX0     Manufacturer: Siemens
SIPLUS HMI KP300 Basic mono "3,6"" T1 RAIL -25 ... +55°C T1" at 70°C for 10 min with conformal coating based on 6AV6647-0AH11-3AX0 . Basic "Panel, key operation, 3"" FSTN" LCD display, Black/white,

Availability On Request

POA

This product has been superseded by

6AG26470AH111AX1

Please check compatibility before purchasing.

  • SIPLUS HMI KP300 Basic mono
  • 3.6-inch FSTN LCD display
  • Operating temperature: -25°C to +55°C
  • Conformal coating for operation at 70°C for 10 minutes
  • Product discontinued since: 27/01/23
  • Successor model: 6AG2647-0AH11-1AX1

Accessories



Product

Manufacturer Material ID -
6AG2647-0AH11-1AX0
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
43211506

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Degree of protection (NEMA), front side -
UN
Built-in depth -
30 Millimetre
Operation temperature -
-25 Degrees celsius
Number of interfaces PROFINET -
1
Type of display -
STN
Degree of protection (IP), front side -
IP65
Height of the front -
97 Millimetre
Number of buttons with LED -
0
Number of colours of the display -
4
Number of function buttons, programmable -
10
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of online languages -
5
Number of password levels -
50
Number of pixels, horizontal -
240
Number of pixels, vertical -
80
Number of system buttons -
10
Operating temperature -
-25 Degrees celsius
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
30 Millimetre
Screen diagonal -
3.6 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for TCP/IP -
Touch technology -
None
Useful project memory/user memory -
1000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
165 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

6AG26470AH111AX1

Please check compatibility before purchasing.

Additional Information
