6AG41045KK003AB0

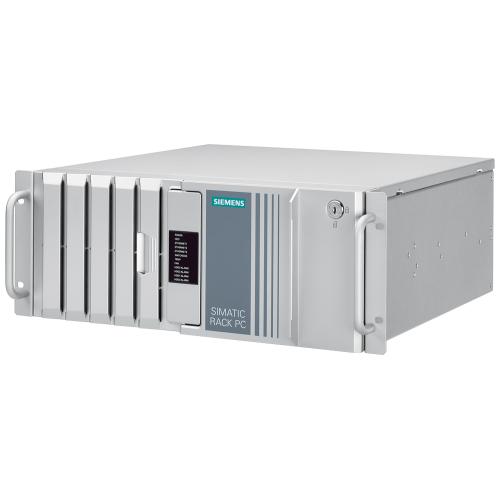

SIMATIC IPC547J (rack PC, 19", 4 U); interfaces: 2x USB 3.0 on the front; COM1, audio on the rear side; 7 slots: 5x PCI Expre

Manufacturer's No: 6AG4104-5KK00-3AB0     Manufacturer: Siemens
SIMATIC IPC547J (rack PC, 19", 4 U); interfaces: 2x USB 3.0 on the front; COM1, audio on the rear side; 7 slots: 5x PCI Express, 2x PCI, temperature and fan monitoring; watchdog; card retainer Core i

Availability Back Order

£3,724.00
  • SIMATIC IPC547J (rack PC, 19", 4U)
  • Interfaces: 2x USB 3.0 (front), COM1, audio (rear)
  • 7 slots: 5x PCI Express, 2x PCI
  • Temperature and fan monitoring, watchdog, card retainer
  • Processor: Core i9-10900E (10 cores/20 threads, 2.8GHz base, 4.7GHz max, 20MB cache)
  • Mainboard: Chipset W480E, 3x Gbit Ethernet, 1x DVI-D, 2x DisplayPort, 6x USB 3.1 Gen.2, 2x USB 2.0 internal, AMT
  • RAID1, 2x 2TB HDD (Enterprise) 3.5" SATA
  • Enclosure: Short, drive support type C (internal installation, 0.2g vibration, 2g shock), blue chromated
  • Power Supply: 100/240V AC industrial unit (without power supply cable)
  • Memory: 32GB DDR4 SDRAM (2x 16GB), dual channel

Read more

  • Operating System: Windows 10 IoT Enterprise 2019 LTSC MUI (en/de/fr/it/es), 64-bit for Core i7/i9/Xeon


Product

Manufacturer Material ID -
6AG4104-5KK00-3AB0
Net Weight -
17.00kg

Additional Product Information

Commodity Code -
84715000
Country of Origin -
DE
Export Control Regulations -
5A992 / N
UNSPSC -
43211500

Technical Specification

Depth -
446 Millimetre
Height -
177 Millimetre
Max. main memory -
128000 Megabyte
Number of free AGP-slots -
0
Number of free ISA-slots -
0
Number of free PCIe-slots -
5
Number of free PCI-slots -
2
Number of free PCMCIA-slots -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces Wireless -
0
Number of storage media bays -
1
Operating temperature -
0 Degrees celsius
Rack-assembly possible -
Width -
430 Millimetre
With graphic card -

Availability Back Order

£3,724.00
