6AG41123GQ020DX0

SIMATIC IPC647E (Rack PC, 19", 2U); 3x Gbit Ethernet (IE/PN), RJ45; 1x DVI-D, 2x displayport, 1x COM1, audio, 4x USB 3.1, 2x

Manufacturer's No: 6AG4112-3GQ02-0DX0     Manufacturer: Siemens
SIMATIC IPC647E (Rack PC, 19", 2U); 3x Gbit Ethernet (IE/PN), RJ45; 1x DVI-D, 2x displayport, 1x COM1, audio, 4x USB 3.1, 2x USB 3.1 (Typ C) rear side; 2x USB 3.0 front, 1x USB3.1 internally; 1x M.2 S

Availability Back Order

£3,439.00

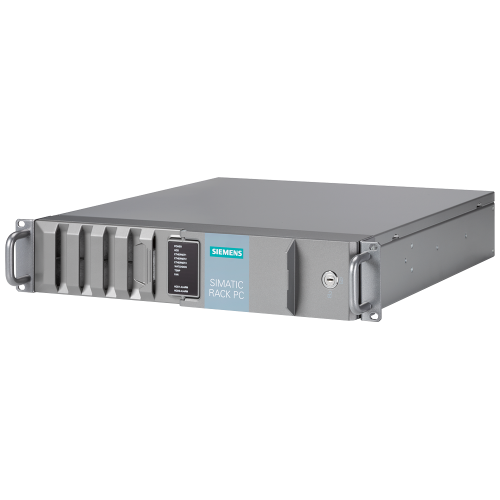

  • SIMATIC IPC647E (Rack PC, 19", 2U)
  • Core i7-8700 (6 cores/12 threads, 3.2GHz base, 4.6GHz max turbo, 12MB cache, VT-D, AMT)
  • 16GB DDR4 SDRAM (2x 8GB), Dual Channel
  • 480GB SSD 2.5" SATA
  • 3x Gbit Ethernet (IE/PN), RJ45
  • 4x USB 3.1, 2x USB 3.1 Type C (rear side), 2x USB 3.0 (front), 1x USB 3.1 (internal)
  • 1x DVI-D, 2x DisplayPort, 1x COM1, audio
  • 1x M.2 Slot (internal)
  • Board with 2 slots: 1x PCIe x16 (16 L), 1x PCIe x16 (4 L)
  • Enclosure with drive support Type B (internal installation, 0.5g vibration, 5g shock)

Read more

  • Temperature and fan monitoring, watchdog, card retainer
  • 100/240V AC industrial power supply unit
  • Windows 10 IoT Enterprise 2019 LTSC MUI (de, en, fr, it, es), 64-bit (for Core i7/Xeon)
  • Without expansion (HW), power supply cable


Product

Manufacturer Material ID -
6AG4112-3GQ02-0DX0
Net Weight -
14.00kg

Additional Product Information

Commodity Code -
84715000
Country of Origin -
DE
UNSPSC -
43211500

Technical Specification

Depth -
444 Millimetre
Height -
88 Millimetre
Max. main memory -
128000 Megabyte
Number of free AGP-slots -
0
Number of free ISA-slots -
0
Number of free PCMCIA-slots -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces Wireless -
0
Operating temperature -
0 Degrees celsius
Width -
430 Millimetre

Availability Back Order

£3,439.00
