6AG41143NK140JX0

SIMATIC IPC847E (Rack PC, 19", 4HU); 3x Gbit Ethernet (IE/PN), RJ45; 1x DVI-D; 2x display ports; 1x COM 1; audio, 4x USB 3.1,

Manufacturer's No: 6AG4114-3NK14-0JX0     Manufacturer: Siemens
SIMATIC IPC847E (Rack PC, 19", 4HU); 3x Gbit Ethernet (IE/PN), RJ45; 1x DVI-D; 2x display ports; 1x COM 1; audio, 4x USB 3.1, 2x USB 3.1 (Type C) on the rear side; 2x USB 3.0 on the front; 1x USB 3.1

Availability Back Order

£7,473.00

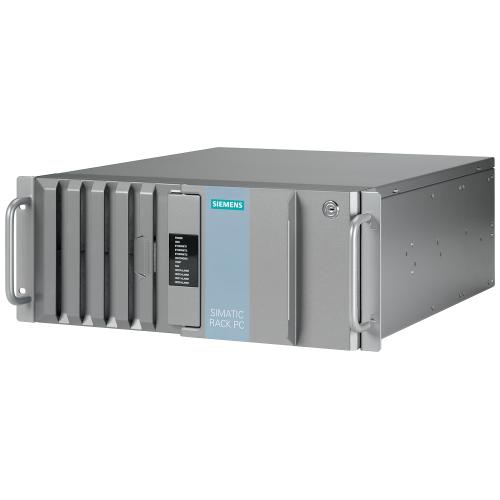

  • SIMATIC IPC847E Rack PC, 19", 4HU
  • Xeon E-2278GE processor (8 cores, 16 threads, 3.3GHz base frequency, 4.7GHz max turbo frequency, 16MB cache, VT-d, AMT)
  • 64GB DDR4 SDRAM (4x 16GB), Dual Channel
  • 3x Gbit Ethernet (IE/PN) with RJ45 connectors
  • 1x DVI-D, 2x display ports, 1x COM 1, audio
  • 4x USB 3.1, 2x USB 3.1 Type C, 2x USB 3.0
  • Temperature and fan monitoring, Watchdog feature
  • 2x 2TB HDD (Enterprise) 3.5" SAS in RAID1 configuration
  • 9 slots: 7x PCI, 2x PCIe x16 (8 L)
  • PCIe x8 RAID Controller with ZMCP module

Read more

  • Enclosure with drive support Type A
  • 100/240V AC industrial power supply unit
  • Windows Server 2019 Standard edition with 5 clients, 64-bit, MUI (en, de, fr, it, es)
  • No extensions or power supply cable included


Product

Manufacturer Material ID -
6AG4114-3NK14-0JX0
Net Weight -
17.00kg

Additional Product Information

Commodity Code -
84715000
Country of Origin -
DE
Export Control Regulations -
5A992 / N
UNSPSC -
43211500

Technical Specification

Depth -
444 Millimetre
Height -
177 Millimetre
Max. main memory -
128000 Megabyte
Number of free AGP-slots -
0
Number of free ISA-slots -
0
Number of free PCMCIA-slots -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces Wireless -
0
Operating temperature -
0 Degrees celsius
Width -
430 Millimetre

Availability Back Order

£7,473.00
