6AV21436DB000VL0

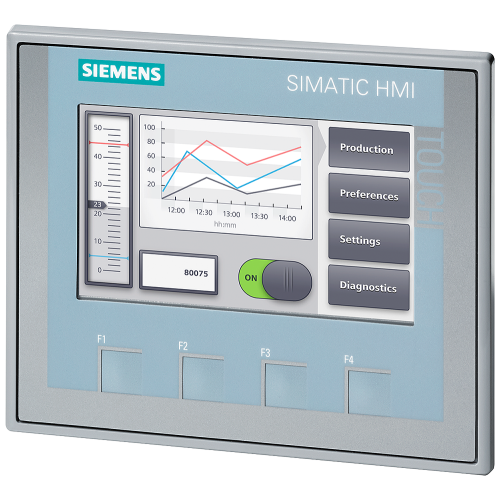

SIMATIC HMI OEM KTP400 Basic AVL

Manufacturer's No: 6AV2143-6DB00-0VL0     Manufacturer: Siemens
SIMATIC HMI OEM KTP400 Basic AVL

Availability On Request

£518.00
  • SIMATIC HMI OEM KTP400 Basic AVL
  • Basic Panel with front adaptation
  • 4" TFT display with 65536 colors
  • Key/touch operation
  • PROFINET interface
  • Configurable from WinCC Basic V13/ STEP 7 Basic V13
  • Contains open-source software provided free of charge on enclosed CD


Product

Manufacturer Material ID -
6AV2143-6DB00-0VL0
Net Weight -
0.43kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
39121521

Technical Specification

Type of display -
TFT
Height of the front -
116 Millimetre
Number of buttons with LED -
0
Number of colours of the display -
65536
Number of function buttons, programmable -
4
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
1
Number of HW-interfaces Wireless -
0
Number of online languages -
10
Number of password levels -
50
Number of pixels, horizontal -
480
Number of pixels, vertical -
272
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
39 Millimetre
Screen diagonal -
4.3 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for TCP/IP -
Touch technology -
Resistive touch
Useful project memory/user memory -
10000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
140 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability On Request

£518.00
