6AV21438JB500AA0

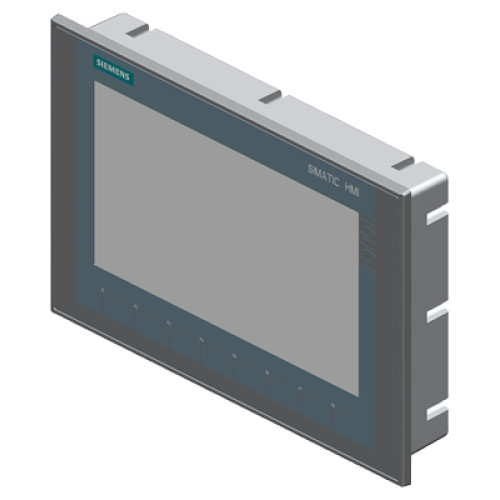

SIMATIC HMI IWP900 0 to +50 °C

Manufacturer's No: 6AV2143-8JB50-0AA0     Manufacturer: Siemens
SIMATIC HMI IWP900 0 to +50 °C

Availability On Request

POA
  • SIMATIC HMI IWP900 Industrial Web panel
  • 9" TFT display with 65536 colors
  • Key/touch operation
  • PROFINET interface
  • HTML5 support
  • Stand-alone operation
  • Open Source software included at no cost
  • No WinCC configuration needed

Accessories



Product

Manufacturer Material ID -
6AV2143-8JB50-0AA0
Net Weight -
1.13kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
CN
UNSPSC -
39121521

Technical Specification

Number of password levels -
-
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Degree of protection (NEMA), front side -
UN
Built-in depth -
40 Millimetre
Operation temperature -
0 Degrees celsius
Number of interfaces PROFINET -
0
Type of display -
TFT
Degree of protection (IP), front side -
IP65
Height of the front -
182 Millimetre
Number of buttons with LED -
0
Number of colours of the display -
65536
Number of function buttons, programmable -
8
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
1
Number of HW-interfaces Wireless -
0
Number of online languages -
2
Number of pixels, horizontal -
800
Number of pixels, vertical -
480
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Recess depth -
40 Millimetre
Screen diagonal -
9 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for TCP/IP -
Touch technology -
Resistive touch
Useful project memory/user memory -
10000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
267 Millimetre
With alpha numeric keyboard -
With colour display -
With numeric keyboard -
