6AV21456KB200AS0

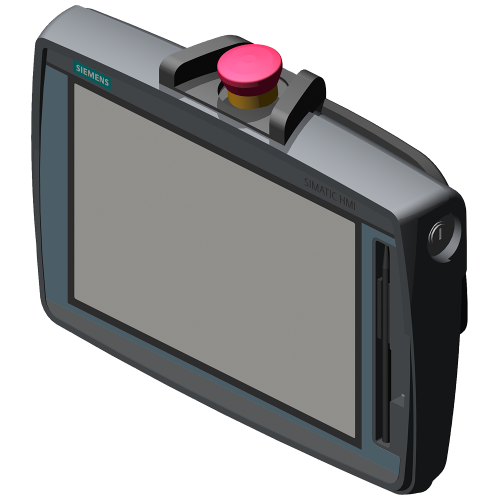

SIMATIC HMI TP1000F MOBILE 10.0" TFT display, 1280x800 pixels, 16 million colors, Touch operation, touch pen, 1x PROFINET/Ind

Manufacturer's No: 6AV2145-6KB20-0AS0     Manufacturer: Siemens
SIMATIC HMI TP1000F MOBILE 10.0" TFT display, 1280x800 pixels, 16 million colors, Touch operation, touch pen, 1x PROFINET/Industrial Ethernet interface, 1x multimedia card, 1x USB, key-operated switch

View 3D

Availability Back Order

£3,888.00
  • 10.0" TFT display with 1280x800 pixels resolution
  • 16 million colors for high-quality visuals
  • Touch operation with touch pen included
  • 1x PROFINET/Industrial Ethernet interface
  • 1x multimedia card slot and 1x USB port
  • Key-operated switch and acknowledgement button
  • 1 emergency stop/stop button configurable from WinCC Comfort V14

Accessories



Product

Manufacturer Material ID -
6AV2145-6KB20-0AS0
Net Weight -
1.77kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Number of grey-scales/blue-scales of display -
-
Degree of protection (NEMA) -
UN
Operation temperature -
0 Degrees celsius
Degree of protection (IP) -
IP65
Number of interfaces PROFINET -
1
Type of display -
TFT
Connection, pluggable -
Degree of protection (IP rating) -
IP65
Depth -
91 Millimetre
Height -
224 Millimetre
Max. height of fall (in accordance with IEC 60068-2-32) -
1.2 Metre
Number of buttons with LED -
0
Number of colours of the display -
16777216
Number of function buttons, programmable -
0
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
1
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of password levels -
50
Number of pixels, horizontal -
1280
Number of pixels, vertical -
800
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Process default value (input) possible -
Process value representation (output) possible -
Screen diagonal -
10.1 inch
Suitable for emergency stop -
Suitable for safety functions -
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
Useful project memory/user memory -
12000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Weight -
1.6 Kilogram
Width -
307.5 Millimetre
With colour display -
With enabling button/emergency-stop switch -
With message indication -
With message system (incl. buffer and confirmation) -
With recipes -
With touch screen -

Availability Back Order

£3,888.00
