6AV21458GB010AA0

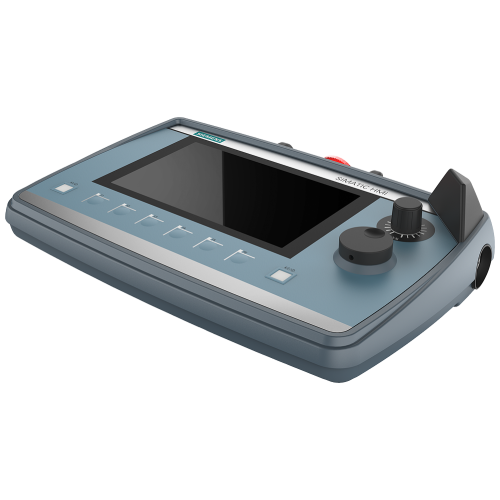

SIMATIC HMI KTP700F Mobile HW/OR, 7.0 TFT display, 800 x 480 pixel,16m colors key and touch operation, 6 function keys, 2 illumin

Manufacturer's No: 6AV2145-8GB01-0AA0     Manufacturer: Siemens
SIMATIC HMI KTP700F Mobile HW/OR, 7.0  TFT display, 800 x 480 pixel,16m colors key and touch operation, 6 function keys, 2 illuminated push-buttons, 1

Availability On Request

£3,471.00
  • 7.0" TFT display with 800 x 480 pixel resolution
  • 16m colors for clear visuals
  • Key and touch operation for user flexibility
  • 6 function keys and 2 illuminated push-buttons
  • Interfaces: 1x PROFINET/Industrial Ethernet, 1x multimedia card, 1x USB
  • Key-operated switch, acknowledgement switch, emergency stop/stop button
  • Configurable from WinCC Comfort V15
  • Handwheel and override feature

Accessories



Product

Manufacturer Material ID -
6AV2145-8GB01-0AA0
Net Weight -
1.80kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
UNSPSC -
43201503

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Number of grey-scales/blue-scales of display -
-
Degree of protection (NEMA) -
UN
Operation temperature -
0 Degrees celsius
Degree of protection (IP) -
IP65
Number of interfaces PROFINET -
1
Type of display -
TFT
Connection, pluggable -
Degree of protection (IP rating) -
IP65
Depth -
119 Millimetre
Height -
224 Millimetre
Max. height of fall (in accordance with IEC 60068-2-32) -
1.2 Metre
Number of buttons with LED -
6
Number of colours of the display -
16777216
Number of function buttons, programmable -
6
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
1
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of password levels -
50
Number of pixels, horizontal -
800
Number of pixels, vertical -
480
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Process default value (input) possible -
Process value representation (output) possible -
Screen diagonal -
7 inch
Suitable for emergency stop -
Suitable for safety functions -
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
Useful project memory/user memory -
12000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Weight -
1.3 Kilogram
Width -
307 Millimetre
With colour display -
With enabling button/emergency-stop switch -
With message indication -
With message system (incl. buffer and confirmation) -
With recipes -
With touch screen -

Availability On Request

£3,471.00
