6AV66467BA000AA0

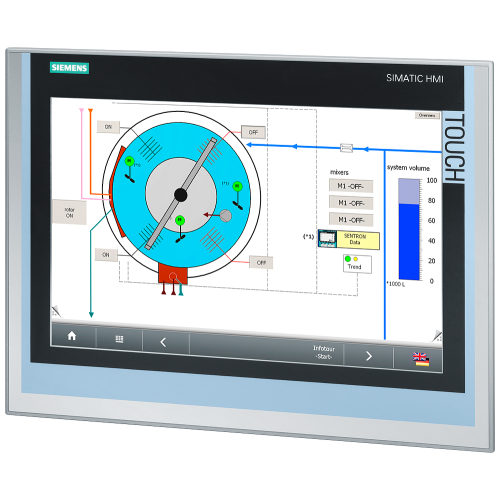

SIMATIC HMI, IWP1500MT, industrial web panel, multi-touch, HTML5 browser, 15 widescreen TFT display, built-in unit

Manufacturer's No: 6AV6646-7BA00-0AA0     Manufacturer: Siemens
SIMATIC HMI, IWP1500MT, industrial web panel, multi-touch, HTML5 browser, 15 widescreen TFT display, built-in unit

Availability On Request

£2,224.00
  • SIMATIC HMI IWP1500MT
  • Industrial web panel with multi-touch capability
  • 15" widescreen TFT display
  • HTML5 browser support
  • Built-in unit


Product

Manufacturer Material ID -
6AV6646-7BA00-0AA0
Net Weight -
6.00kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5A992
UNSPSC -
39121521

Technical Specification

Number of interfaces PROFINET -
-
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Degree of protection (NEMA) -
UN
Built-in depth -
73 Millimetre
Operation temperature -
0 Degrees celsius
Front build in possible -
Number of HW-interfaces Wireless -
0
Preinstalled operating system -
None
Type of display -
TFT
Degree of protection (IP), front side -
IP65
Front built-in possible -
Height of the front -
257 Millimetre
Max. main memory -
2000 Megabyte
Number of buttons with LED -
0
Number of free AGP-slots -
0
Number of free ISA-slots -
0
Number of free PCI-slots -
0
Number of free PCMCIA-slots -
0
Number of function buttons -
0
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces PS2 -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces SCSI -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
4
Number of pixels, horizontal -
1366
Number of pixels, vertical -
768
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Rack-assembly possible -
Recess depth -
73 Millimetre
Screen diagonal -
15.6 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for other bus systems -
Voltage type of supply voltage -
DC
Width of the front -
398 Millimetre
With hard disc -
With touch screen -

Availability On Request

£2,224.00
