6AV66470AB113AX1

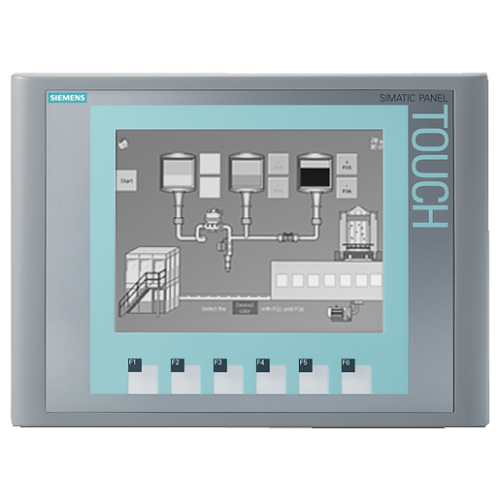

SIMATIC HMI KTP600 Basic mono PN

Manufacturer's No: 6AV6647-0AB11-3AX1     Manufacturer: Siemens
SIMATIC HMI KTP600 Basic mono PN

Availability Back Order

POA
  • Model: SIMATIC HMI KTP600 Basic mono PN
  • Panel Type: Basic Panel with key/touch operation
  • Display: 6" STN display with 4 gray levels
  • Interface: PROFINET interface
  • Compatibility: Configurable with WinCC flexible 2008 SP2 Compact, WinCC Basic V10.5, STEP 7 Basic V10.5
  • Includes open-source software provided on CD


Product

Manufacturer Material ID -
6AV6647-0AB11-3AX1
Net Weight -
1.32kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43201503

Technical Specification

Degree of protection (IP), front side -
IP65
Height of the front -
158 Millimetre
Number of buttons with LED -
0
Number of colours of the display -
4
Number of function buttons, programmable -
6
Number of grey-scales/blue-scales of display -
4
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of online languages -
5
Number of password levels -
50
Number of pixels, horizontal -
320
Number of pixels, vertical -
240
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
44 Millimetre
Screen diagonal -
5.7 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for TCP/IP -
Touch technology -
Resistive touch
Type of display -
STN
Useful project memory/user memory -
1000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
214 Millimetre
With alpha numeric keyboard -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -
