6AV78612TA002AA0

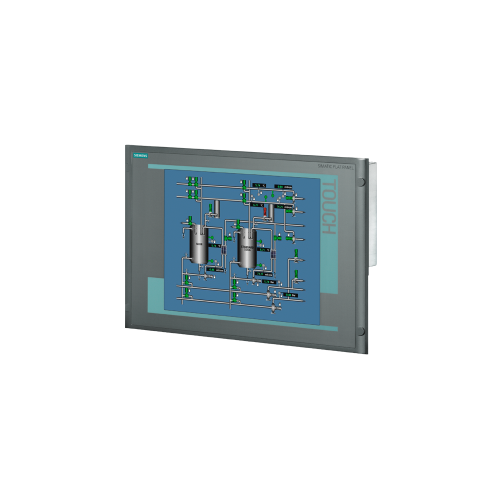

SIMATIC Flat Panel 15T, 15-inch Touch TFT screen with 1024x 768 pixels resolution for 24 V DC, VGA,

Manufacturer's No: 6AV7861-2TA00-2AA0     Manufacturer: Siemens
SIMATIC Flat Panel 15T, 15-inch Touch TFT screen with 1024x 768 pixels resolution for 24 V DC, VGA,

View 3D

Availability Back Order

POA
  • 15-inch Touch TFT screen
  • Resolution: 1024 x 768 pixels
  • Power supply: 24 V DC
  • Interfaces: VGA, DVI-D
  • Includes VGA cable (1.8 m)


Product

Manufacturer Material ID -
6AV7861-2TA00-2AA0
Net Weight -
9.00kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Horizontal frequency -
- kiloHertz
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Number of grey-scales/blue-scales of display -
-
Built-in depth -
55 Millimetre
Operation temperature -
0 Degrees celsius
Front build in possible -
Type of display -
TFT
Degree of protection (IP), front side -
IP65
Frame frequency -
0.06 kiloHertz
Front built-in possible -
Height of the front -
310 Millimetre
Number of colours of the display -
16000000
Number of function buttons -
0
Number of pixels, horizontal -
1024
Number of pixels, vertical -
768
Operating temperature -
0 Degrees celsius
Rack-assembly possible -
Recess depth -
55 Millimetre
Screen diagonal -
15.6 inch
Supply voltage DC -
19.2 Volt
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width of the front -
483 Millimetre
With colour display -
With HW-interface digital video signal -
With HW-interface USB -
With HW-interface video signal, analogue -
With On Screen Display -
With touch screen -

Availability Back Order

POA
