6AV78613TB102AA0

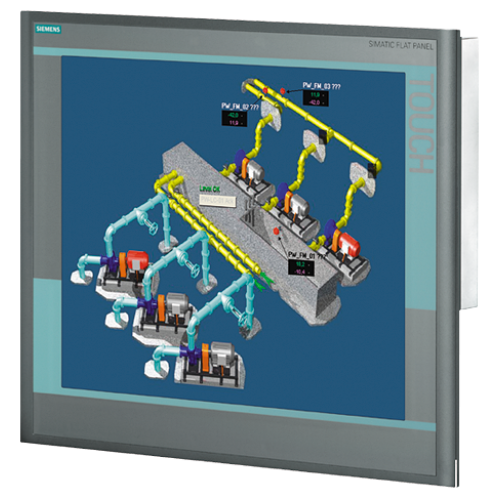

SIMATIC Flat Panel 19T extended 19-inch touch TFT screen with 1280x 1024 pixels resolution for 24 V

Manufacturer's No: 6AV7861-3TB10-2AA0     Manufacturer: Siemens
SIMATIC Flat Panel 19T extended 19-inch touch TFT screen with 1280x 1024 pixels resolution for 24 V

View 3D

Availability Back Order

POA
  • 19-inch touch TFT screen
  • Resolution: 1280 x 1024 pixels
  • Input voltage: 24 V DC and 120/240 V AC
  • Interfaces: VGA, DVI-D
  • Remote placement up to 30 m


Product

Manufacturer Material ID -
6AV7861-3TB10-2AA0
Net Weight -
12.00kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Horizontal frequency -
- kiloHertz
Number of grey-scales/blue-scales of display -
-
Built-in depth -
57 Millimetre
Screen diagonal -
19 inch
Operation temperature -
0 Degrees celsius
Voltage type of supply voltage -
AC/DC
With colour display -
Number of pixels, horizontal -
1280
Number of pixels, vertical -
1024
With touch screen -
Degree of protection (IP), front side -
IP65
Number of function buttons -
0
With On Screen Display -
With HW-interface video signal, analogue -
With HW-interface digital video signal -
With HW-interface USB -
Width of the front -
483 Millimetre
Height of the front -
400 Millimetre
Frame frequency -
0.06 kiloHertz
Front build in possible -
Rack-assembly possible -
Wall mounting/direct mounting -
Supply voltage AC 50 Hz -
90 Volt
Supply voltage AC 60 Hz -
90 Volt
Supply voltage DC -
19.2 Volt
Type of display -
TFT

Availability Back Order

POA
