6AV78616TB101BA0

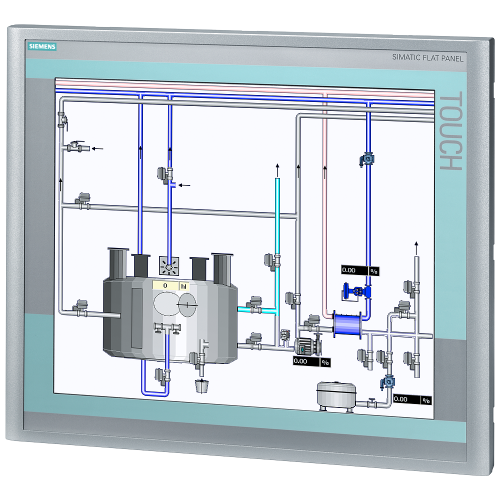

SIMATIC Flat Panel pro 19-inch touch TFT screen with 1280x 1024 pixels resolution 24 V DC/230 V AC c

Manufacturer's No: 6AV7861-6TB10-1BA0     Manufacturer: Siemens
SIMATIC Flat Panel pro 19-inch touch TFT screen with 1280x 1024 pixels resolution 24 V DC/230 V AC c

Availability On Request

POA
  • 19-inch touch TFT screen
  • Resolution: 1280 x 1024 pixels
  • Input voltage: 24 V DC / 230 V AC
  • VGA and DVI-D interfaces
  • Can be placed up to 30 meters away
  • Fully enclosed according to IP65 and Enclosure Type 4


Product

Manufacturer Material ID -
6AV7861-6TB10-1BA0
Net Weight -
13.74kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Operation temperature -
- Degrees celsius
Horizontal frequency -
- kiloHertz
Number of grey-scales/blue-scales of display -
-
Built-in depth -
112.5 Millimetre
Degree of protection (IP), front side -
IP65
Frame frequency -
0.06 kiloHertz

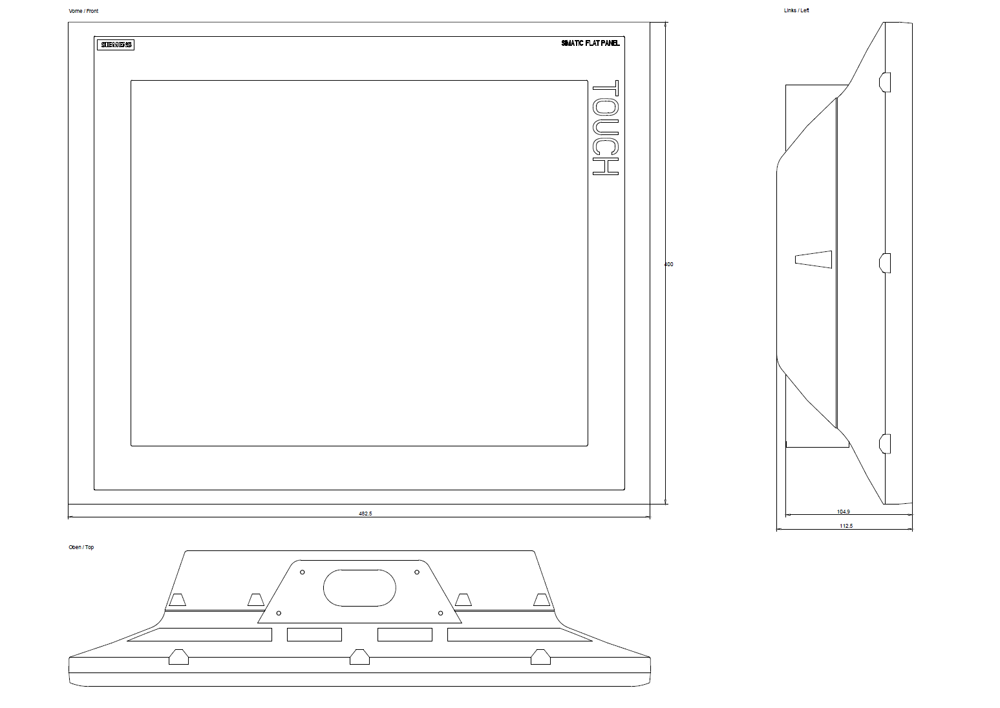

Height of the front -
400 Millimetre
Number of colours of the display -
16000000
Number of function buttons -
0
Number of pixels, horizontal -
1280
Number of pixels, vertical -
1024
Operating temperature -
0 Degrees celsius
Recess depth -
112.5 Millimetre
Screen diagonal -
18.5 inch
Supply voltage AC 50 Hz -
90 Volt
Supply voltage AC 60 Hz -
90 Volt
Supply voltage DC -
19.2 Volt
Type of display -
TFT
Voltage type of supply voltage -
AC/DC
Width of the front -
483 Millimetre
With colour display -
With HW-interface digital video signal -
With HW-interface USB -
With HW-interface video signal, analogue -
With On Screen Display -
With touch screen -

Availability On Request

POA
