6AV78635MA202AA0

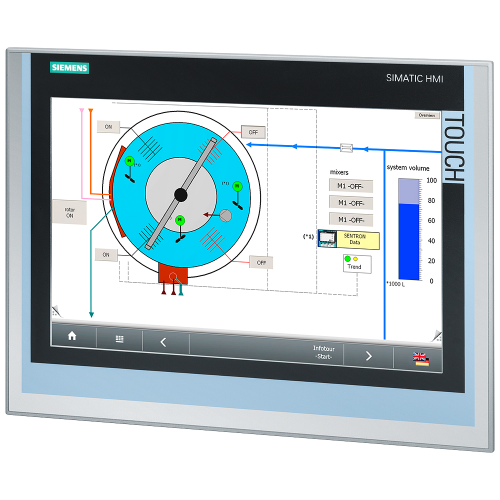

SIMATIC Flat Panel 15" MT ETH

Manufacturer's No: 6AV7863-5MA20-2AA0     Manufacturer: Siemens
SIMATIC Flat Panel 15" MT ETH

Availability On Request

POA

This product has been superseded by

6AV78635MA102AA0

Please check compatibility before purchasing.

  • 15" multi-touch display with 1920x1080 pixels resolution
  • Ethernet connectivity
  • Built-in unit for 24 V DC
  • DisplayPort and Ethernet monitor
  • USB port on the rear side

Accessories

Follow-up article



Product

Manufacturer Material ID -
6AV7863-5MA20-2AA0
Net Weight -
6.30kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43211902

Technical Specification

Type of display -
TFT
Degree of protection (IP), front side -
IP65
Front built-in possible -
Height of the front -
257 Millimetre
Mouse-cursor control integrated -
Number of colours of the display -
16777216
Number of pixels, horizontal -
1920
Number of pixels, vertical -
1080
Operating temperature -
0 Degrees celsius
Recess depth -
63.4 Millimetre
Screen diagonal -
15.6 inch
Supply voltage DC -
19.2 Volt
Voltage type of supply voltage -
DC
Width of the front -
398 Millimetre
With colour display -
With HW-interface digital video signal -
With HW-interface USB -
With touch screen -

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

6AV78635MA102AA0

Please check compatibility before purchasing.
