6DD16400AH1

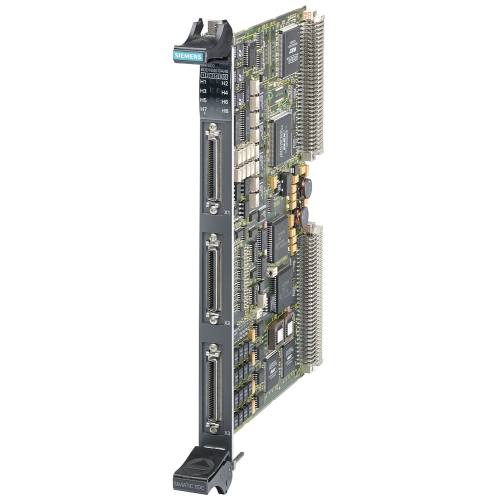

SIMATIC TDC Signal module SM500 DI/DQ with 16 DA/16 DE, 6 LEDs

Manufacturer's No: 6DD1640-0AH1     Manufacturer: Siemens
SIMATIC TDC Signal module SM500 DI/DQ with 16 DA/16 DE, 6 LEDs

Availability On Request

POA
  • Signal module for SIMATIC TDC
  • 16 digital inputs and 16 digital outputs
  • 16 analog outputs
  • 6 LEDs for status indication


Product

Manufacturer Material ID -
6DD1640-0AH1
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
32151705

Technical Specification

Time delay at signal exchange -
- Millisecond
Type of digital output -
UN
Explosion safety category for gas -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
SIL according to IEC 61508 -
UN
Type of electric connection -
Other
Depth -
160 Millimetre
Digital inputs configurable -
Digital outputs configurable -
Explosion safety category for dust -
None
Height -
233 Millimetre
Input current at signal 1 -
3 Milliampere
Number of digital inputs -
16
Number of digital outputs -
16
Output current -
0.05 Ampere
Permitted voltage at input -
-1 Volt
Permitted voltage at output -
0 Volt
Time delay at signal change -
0.1 Millisecond
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
20 Millimetre

Availability On Request

POA
