6EP13311LD01

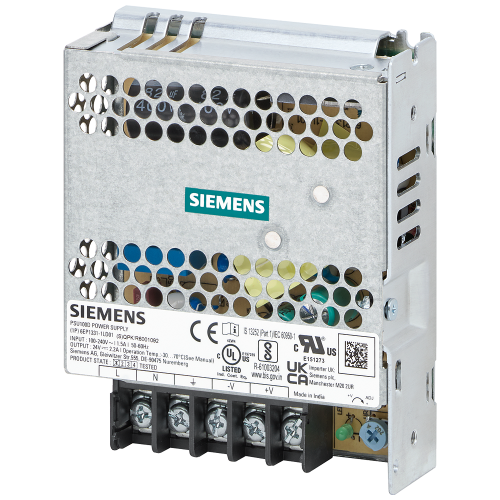

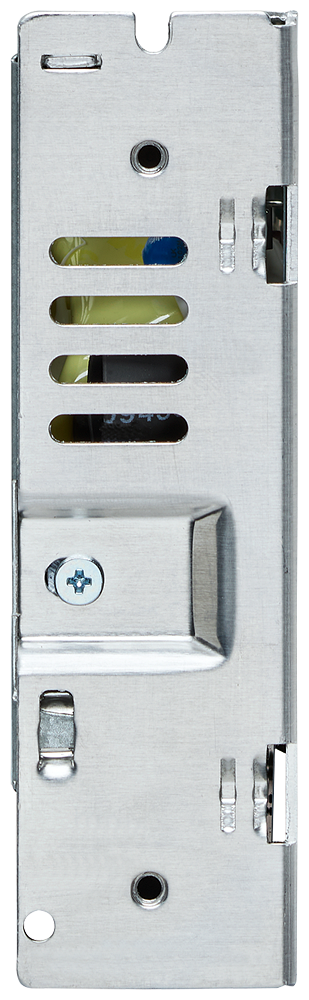

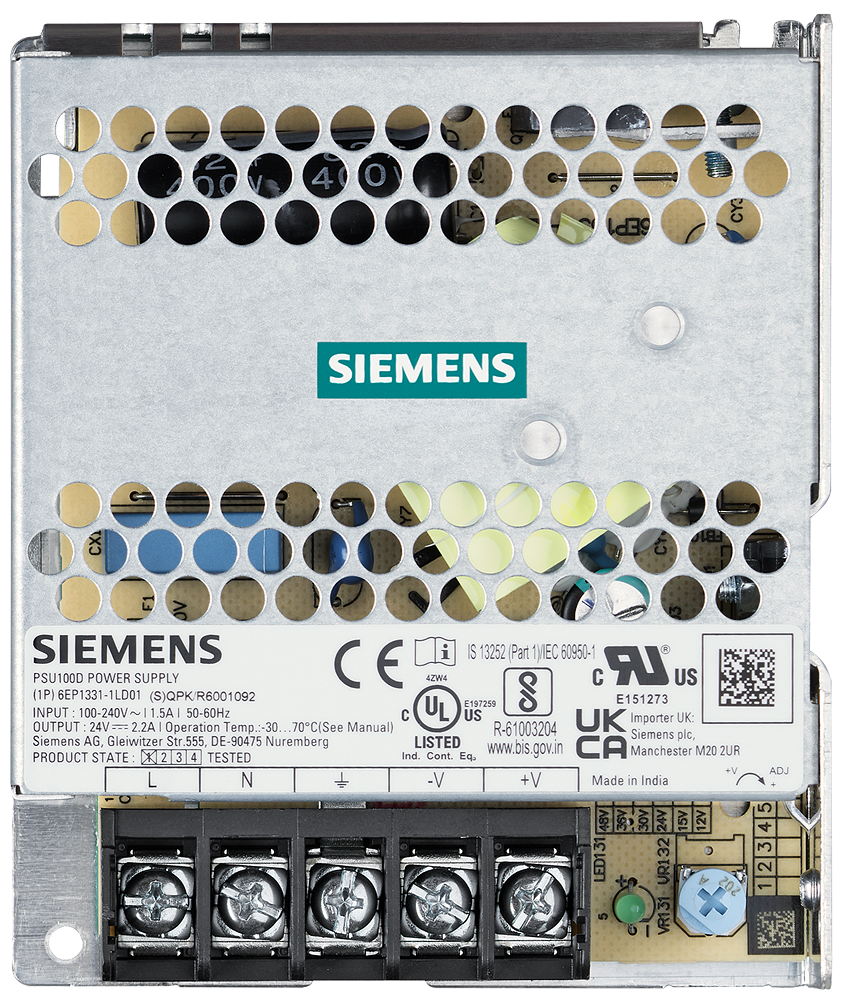

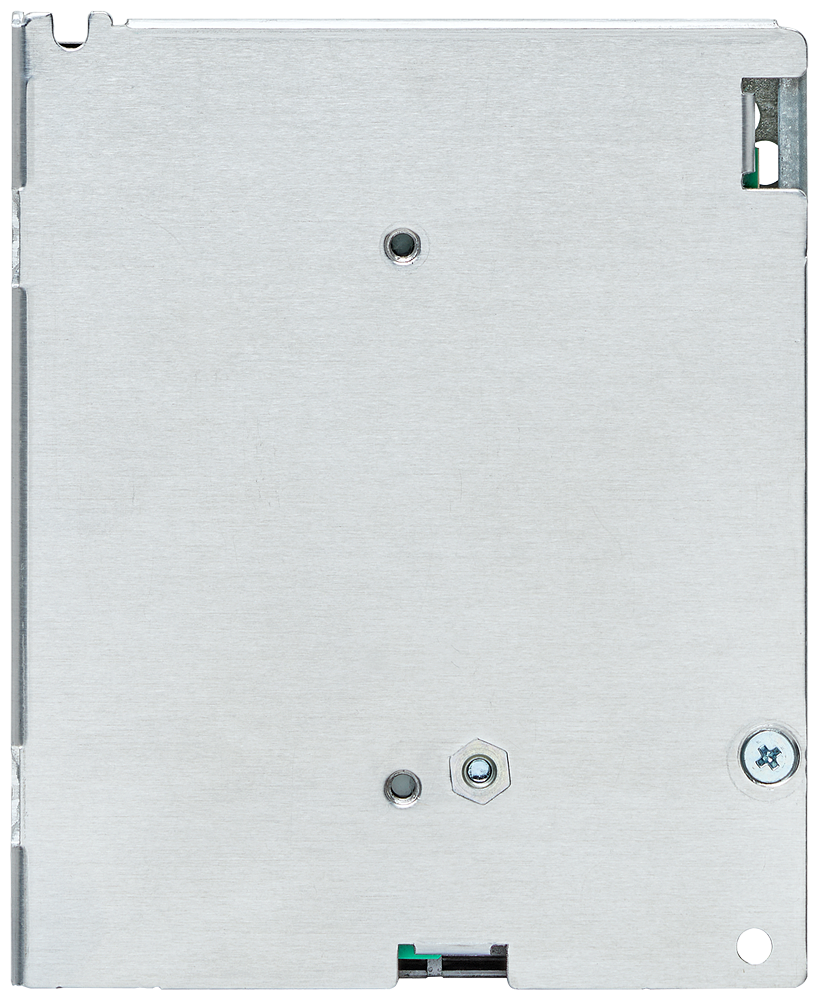

Power supply SITOP PSU100D, single-phase 24 V DC/2.2 A for wall mounting

Manufacturer's No: 6EP1331-1LD01     Manufacturer: Siemens

Availability Back Order

£54.00
  • Model: PSU100D
  • Input Voltage: 100-240 V AC
  • Output Voltage: 24 V DC
  • Output Current: 2.2 A
  • Stabilized power supply
Product video


Product

Manufacturer Material ID -
6EP1331-1LD01
Net Weight -
0.18kg

Additional Product Information

Country of Origin -
IN
UNSPSC -
32121704

Technical Specification

1st secondary output voltage -
24 Volt
Depth -
99 Millimetre
Direct mounting possible -
Height -
29 Millimetre
Max. output current 1 -
2.2 Ampere
Nominal value output current 1 -
2.2 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
50 Watt
Rated supply voltage at AC 50 Hz -
240 Volt
Rated supply voltage at AC 60 Hz -
100 Volt
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC
Wall mounting possible -
Width -
82 Millimetre

Availability Back Order

£54.00
