6EP15663AA00

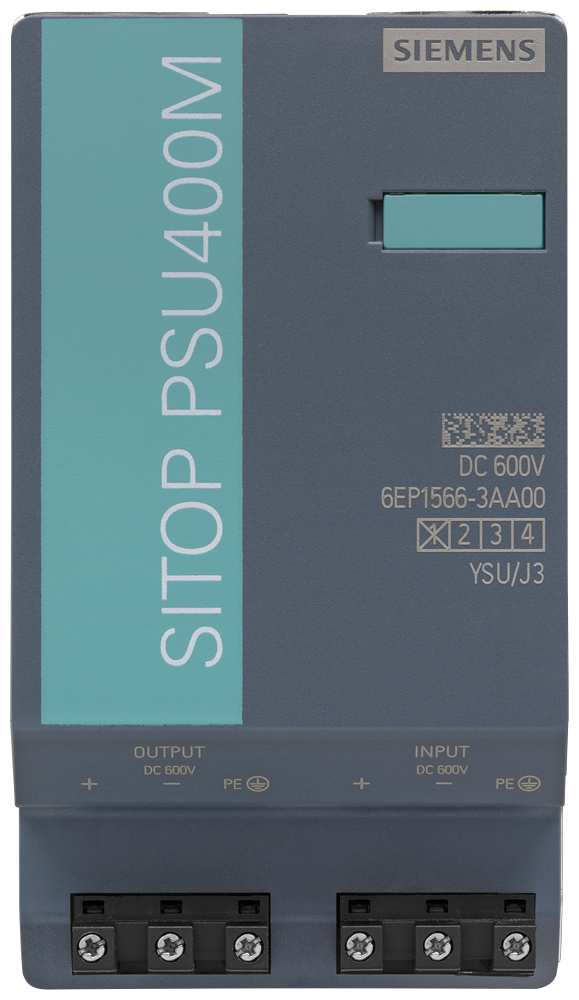

SITOP PSE400M SAB Ballast for 6EP1536-3AA00 Input: 300 to 900 V DC Output: 300 to 900 V DC

Manufacturer's No: 6EP1566-3AA00     Manufacturer: Siemens
SITOP PSE400M SAB Ballast for 6EP1536-3AA00 Input: 300 to 900 V DC Output: 300 to 900 V DC

Availability On Request

£113.00
  • Product: SITOP PSE400M SAB Ballast
  • Compatible with: 6EP1536-3AA00
  • Input Voltage Range: 300 to 900 V DC
  • Output Voltage Range: 300 to 900 V DC


Product

Manufacturer Material ID -
6EP1566-3AA00
Net Weight -
0.52kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
RO
UNSPSC -
32121704

Technical Specification

Power consumption -
- Voltampere
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN

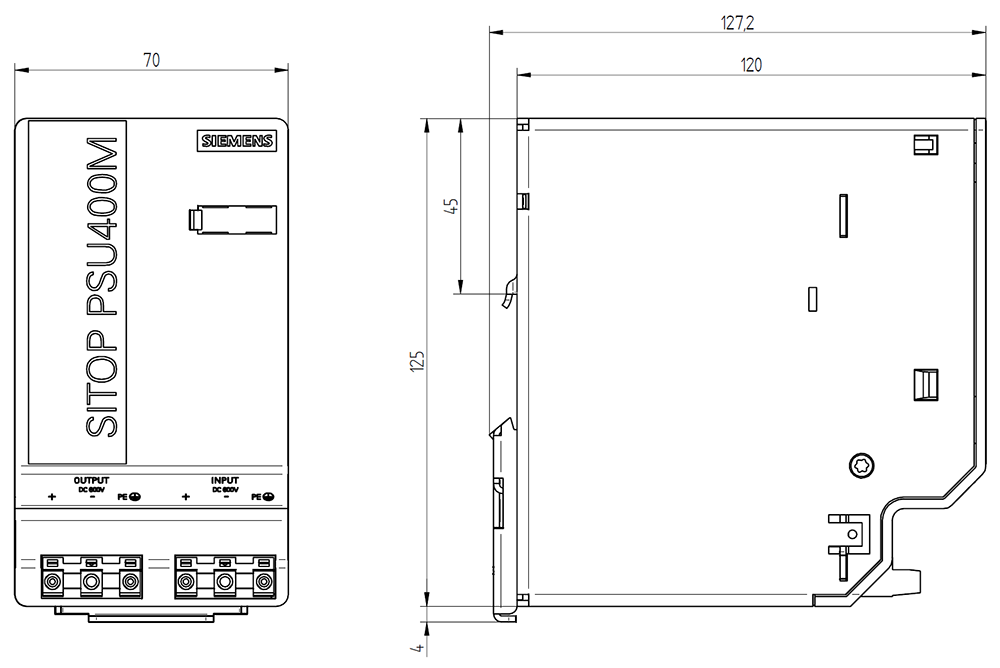

Built-in height -
129 Millimetre
Built-in width -
70 Millimetre
Degree of protection (IP) -
IP20
1st secondary output voltage -
200 Volt
Degree of protection (IP rating) -
IP20
Depth -
120 Millimetre
Height -
125 Millimetre
Max. output current 1 -
2.8 Ampere
Nominal value output current 1 -
0.85 Ampere
Nominal value output voltage 1 -
600 Volt
Power output -
505 Watt
Rail mounting possible -
Rated supply voltage at DC -
600 Volt
Recess height -
129 Millimetre
Recess width -
70 Millimetre
Type of electric connection -
Screw connection
Voltage type of supply voltage -
DC
Width -
70 Millimetre

Availability On Request

£113.00
