6EP31340TA000AY0

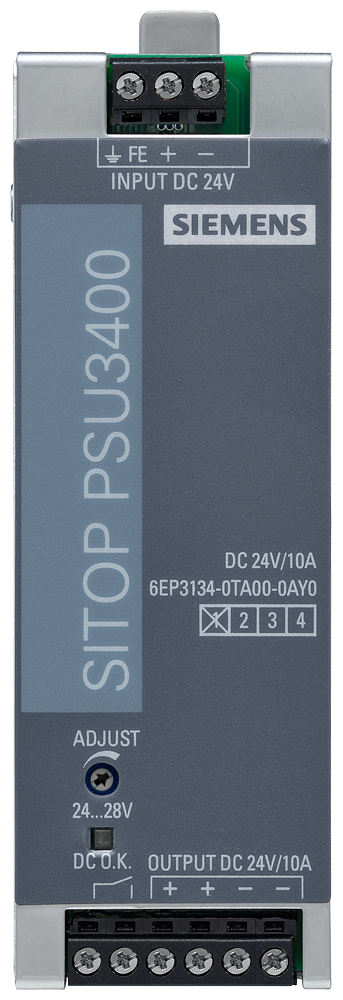

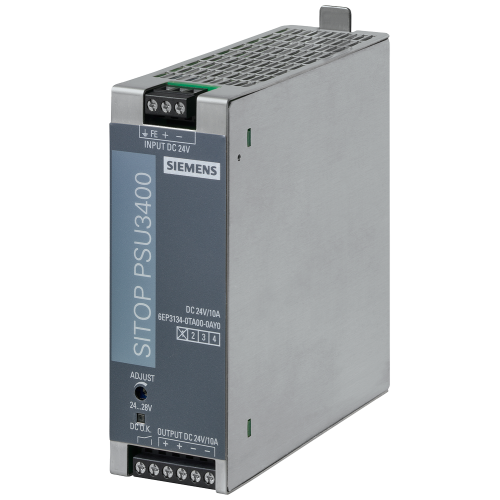

SITOP PSU3400 24 V/10 A Stabilized power supply Input: 24 V DC (14…32 V) Output: 24 V DC/10 A

Manufacturer's No: 6EP3134-0TA00-0AY0     Manufacturer: Siemens
SITOP PSU3400 24 V/10 A Stabilized power supply Input: 24 V DC (14…32 V) Output: 24 V DC/10 A

View 3D

Availability In Stock

£225.00
  • Model: SITOP PSU3400
  • Input Voltage: 24 V DC (14 to 32 V)
  • Output Voltage: 24 V DC
  • Output Current: 10 A

Accessories

Product video
Product video
Product video


Product

Manufacturer Material ID -
6EP3134-0TA00-0AY0
Net Weight -
0.70kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
HU
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

Power consumption -
- Voltampere
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in height -
225 Millimetre
Built-in width -
42 Millimetre
Degree of protection (IP) -
IP20
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP20
Depth -
120 Millimetre
Height -
125 Millimetre
Max. output current 1 -
12.5 Ampere
Modular version -
Nominal value output current 1 -
10 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
260 Watt
Rail mounting possible -
Rated supply voltage at DC -
24 Volt
Recess height -
225 Millimetre
Recess width -
42 Millimetre
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Screw connection
Voltage type of supply voltage -
DC
Width -
42 Millimetre

Availability In Stock

£225.00
