6EP33323SB000AX0

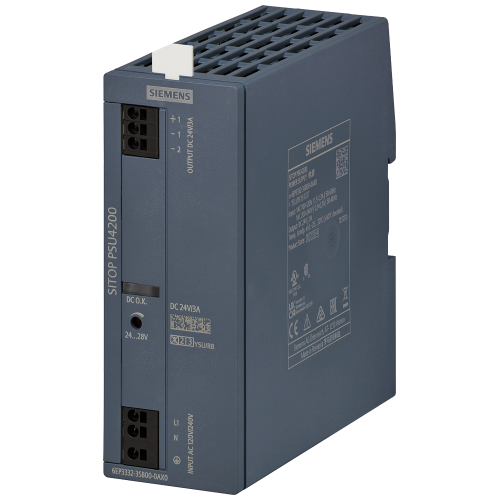

SITOP PSU4200 1AC 24 V/3 A stabilized power supply PSU4200 input: 120/240 V AC output: 24 V DC/3 A The 1-phase power supplies SITO

Manufacturer's No: 6EP3332-3SB00-0AX0     Manufacturer: Siemens

Availability Back Order

£66.00
  • Model: SITOP PSU4200
  • Input Voltage: 120/240 V AC
  • Output Voltage: 24 V DC
  • Output Current: 3 A
  • Stabilized power supply


Product

Manufacturer Material ID -
6EP3332-3SB00-0AX0
Net Weight -
0.50kg

Additional Product Information

Commodity Code -
85044083
Country of Origin -
RO
UNSPSC -
32121704

Technical Specification

1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP20
Depth -
125 Millimetre
Direct mounting possible -
Height -
135 Millimetre
Max. output current 1 -
3 Ampere
Modular version -
Nominal value output current 1 -
3 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
72 Watt
Rail mounting possible -
Rated supply voltage at AC 50 Hz -
240 Volt
Rated supply voltage at AC 60 Hz -
120 Volt
Recess height -
225 Millimetre
Recess width -
50 Millimetre
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Voltage type of supply voltage -
AC
Wall mounting possible -
Width -
50 Millimetre

Availability Back Order

£66.00
