6ES71934CC301AA0

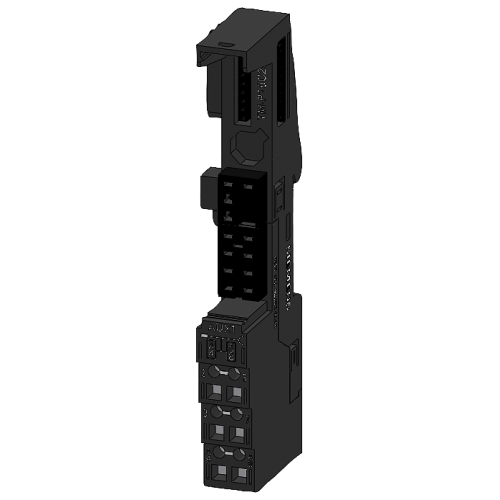

SIMATIC DP, 5 terminal modules TM-P15C23-A1 for ET 200S for power modules, 15 mm width, spring-type

Manufacturer's No: 6ES7193-4CC30-1AA0     Manufacturer: Siemens
SIMATIC DP, 5 terminal modules TM-P15C23-A1 for ET 200S for power modules, 15 mm width, spring-type

Availability On Request

POA

This product has been superseded by

6ES71934CC300AA0

Please check compatibility before purchasing.

  • SIMATIC DP terminal modules TM-P15C23-A1
  • For ET 200S power modules
  • 15 mm width
  • Spring-type
  • Discontinued since: 11/11/21
  • Successor: 6ES7193-4CC30-0AA0 (VPE 1)


Product

Manufacturer Material ID -
6ES7193-4CC30-1AA0
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Front build in possible -

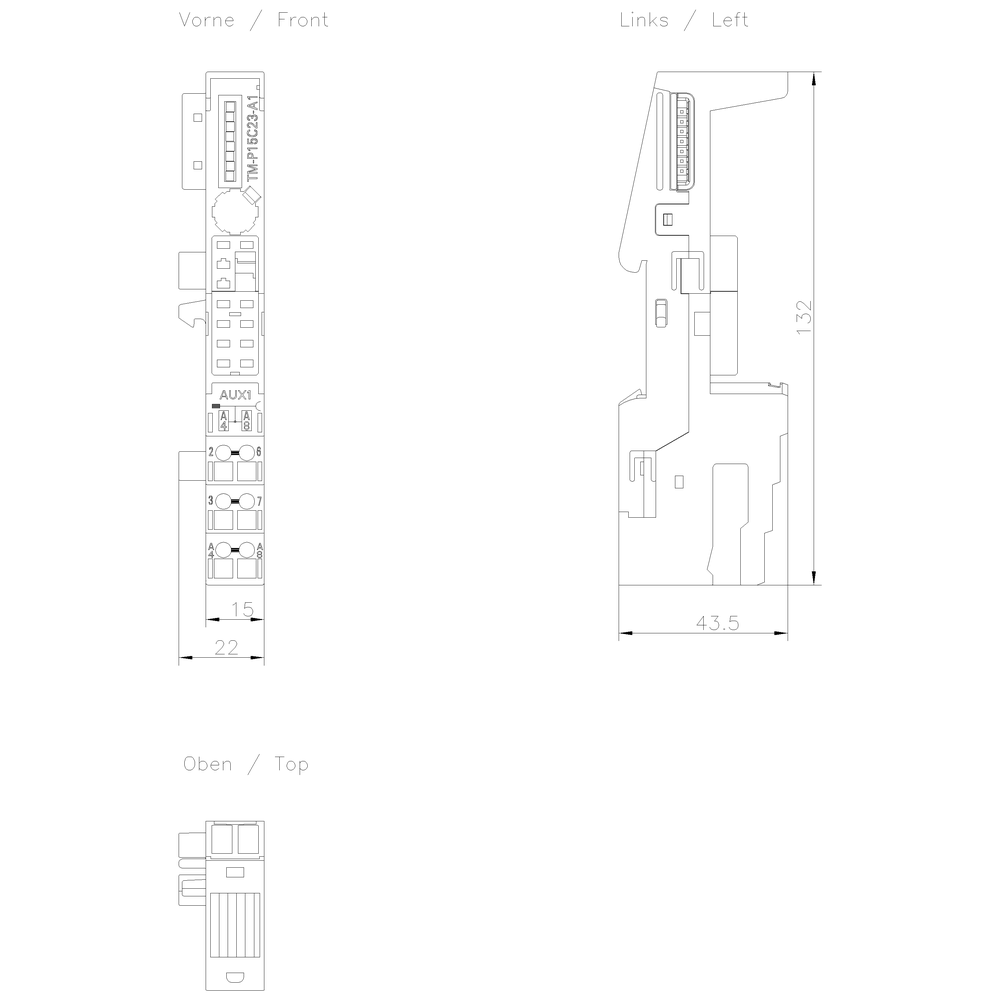

Depth -
43 Millimetre
Height -
132 Millimetre
Input voltage at AC 50 Hz -
120 Volt
Input voltage at AC 60 Hz -
120 Volt
Input voltage at DC -
24 Volt
Max. input current AC 50 Hz -
10 Ampere
Max. input current AC 60 Hz -
10 Ampere
Max. input current DC -
10 Ampere
Max. output current AC 50 Hz -
10 Ampere
Max. output current AC 60 Hz -
10 Ampere
Max. output current DC -
10 Ampere
Number of slots -
2
Output voltage at AC 50 Hz -
120 Volt
Output voltage at AC 60 Hz -
120 Volt
Output voltage at DC -
24 Volt
Rail mounting possible -
System accessory -
Type of output voltage -
AC/DC
Type of voltage (input voltage) -
AC/DC
Wall mounting/direct mounting -
Width -
15 Millimetre
With pluggable modules, others -

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

6ES71934CC300AA0

Please check compatibility before purchasing.
