6ES73177UL100AB0

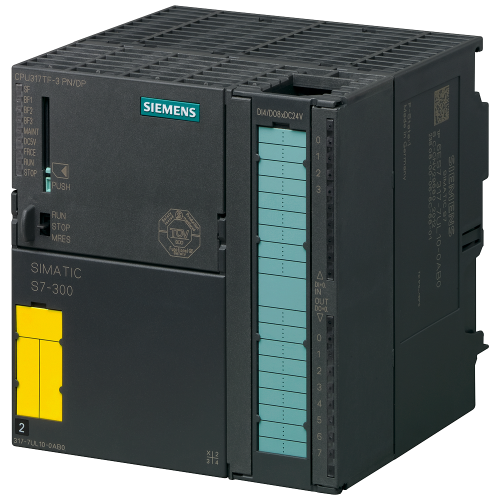

SIMATIC S7-300, CPU 317TF-3 PN/DP, Central processing unit for PLC, Technology and safety tasks, 1.5

Manufacturer's No: 6ES7317-7UL10-0AB0     Manufacturer: Siemens
SIMATIC S7-300, CPU 317TF-3 PN/DP, Central processing unit for PLC, Technology and safety tasks, 1.5

View 3D

Availability Back Order

£8,618.00
  • Model: SIMATIC S7-300, CPU 317TF-3 PN/DP
  • Central processing unit for PLC with focus on technology and safety tasks
  • 1.5 MB work memory
  • Interfaces:
    • 1st interface: MPI/DP with 12 Mbit/s
    • 2nd interface: DP (drive)
    • 3rd interface: Ethernet PROFINET with 2-port switch
  • Integrated I/O for technology tasks
  • Front connector: 1x 40-pole
  • Micro Memory Card minimum 8 MB required

Accessories



Product

Manufacturer Material ID -
6ES7317-7UL10-0AB0
Net Weight -
0.73kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Category according to EN 954-1 -
UN
Max. number of time switches -
-
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Number of interfaces PROFINET -
1
Performance level acc. EN ISO 13849-1 -
Level e
Performance level acc. to EN ISO 13849-1 -
Level e
Depth -
130 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height -
125 Millimetre
Memory size -
1536 kiloByte (1000 Byte)
Model -
Compact
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
4
Number of digital outputs -
8
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
2
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Processing time (1K, binary operation) -
0.025 Millisecond
Rail mounting possible -
Redundancy -
SIL according to IEC 61508 -
3
Suitable for safety functions -
Supply voltage DC -
19.2 Volt
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
System accessory -
Type of memory -
RAM
Voltage type of supply voltage -
DC
Width -
120 Millimetre

Availability Back Order

£8,618.00
