6ES73328TF010AB0

SIMATIC DP, HART analog output, SM 332, 8 AO, 0/4 - 20 mA HART, for ET200M with IM153-2, IM 153-2, 2

Manufacturer's No: 6ES7332-8TF01-0AB0     Manufacturer: Siemens
SIMATIC DP, HART analog output, SM 332, 8 AO, 0/4 - 20 mA HART, for ET200M with IM153-2, IM 153-2, 2

View 3D

Availability Back Order

£2,848.00
  • SIMATIC DP SM 332 module
  • 8 analog outputs (AO)
  • HART communication protocol
  • Output range: 0-20 mA
  • Compatible with ET200M with IM153-2
  • Functions: FW update, HART auxiliary variables, redundancy
  • Local diagnostic buffer with time stamping
Product video
Product video


Product

Manufacturer Material ID -
6ES7332-8TF01-0AB0
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Resolution of the analogue inputs -
- Bit
Type of electric connection -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Analogue outputs configurable -
Degree of protection (IP rating) -
IP20

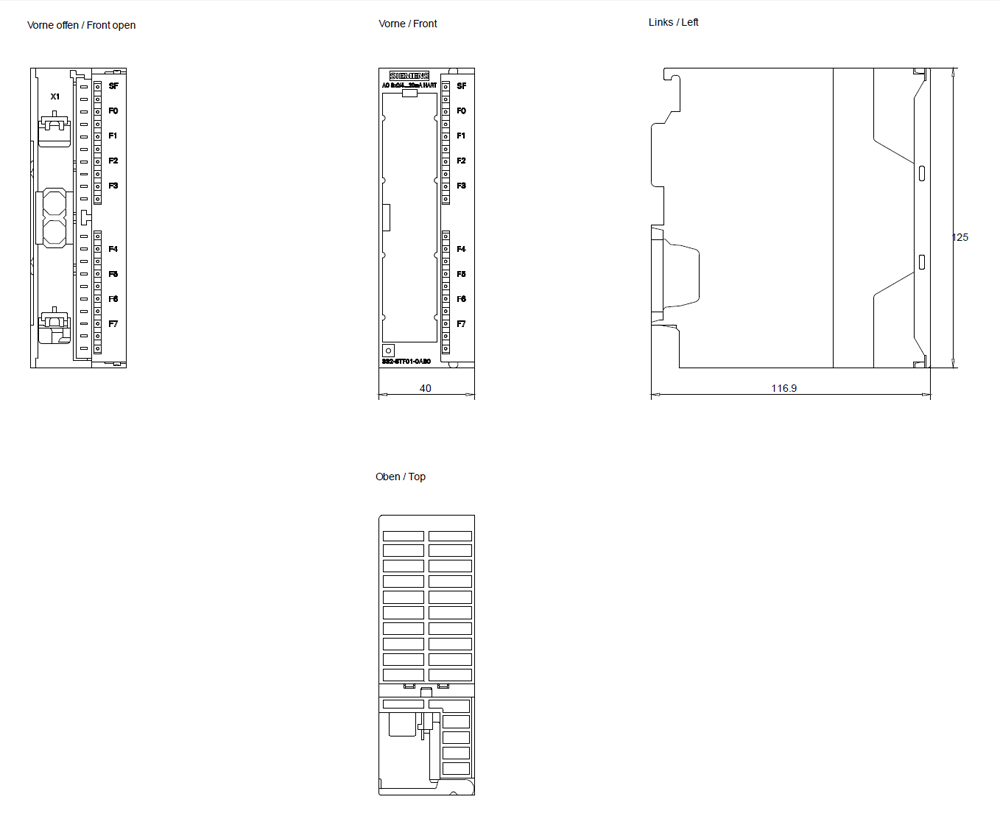

Depth -
117 Millimetre
Front built-in possible -
Height -
125 Millimetre
Number of analogue inputs -
0
Number of analogue outputs -
8
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output signal configurable -
Output, current -
Rail mounting possible -
Resolution of the analogue outputs -
16 Bit
Supply voltage DC -
20.4 Volt
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
System accessory -
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
40 Millimetre

Availability Back Order

£2,848.00
