6ES75162GN000AB0

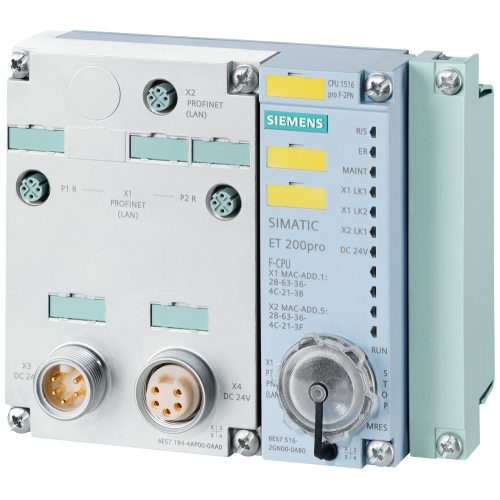

SIMATIC DP, CPU 1516PRO F-2 PN for ET 200pro, Central processing unit with work memory 1.5 MB for pr

Manufacturer's No: 6ES7516-2GN00-0AB0     Manufacturer: Siemens
SIMATIC DP, CPU 1516PRO F-2 PN for ET 200pro, Central processing unit with work memory 1.5 MB for pr

Availability Available to order

POA
  • SIMATIC DP, CPU 1516PRO F-2 PN for ET 200pro
  • Central processing unit with 1.5 MB work memory for program and 5 MB for data
  • 1st interface: PROFINET IRT with 3-port switch
  • 2nd interface: PROFINET RT
  • 10 ns bit performance
  • Degree of protection: IP65/67
  • Requires SIMATIC Memory Card
  • Connection module required

Mandatory additional product

Product video
Product video
Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ES7516-2GN00-0AB0
Net Weight -
0.68kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Category according to EN 954-1 -
UN
Output voltage at AC 50 Hz -
- Volt
Output voltage at AC 60 Hz -
- Volt
Output voltage at DC -
- Volt
Input voltage at AC 50 Hz -
- Volt
Input voltage at AC 60 Hz -
- Volt
Max. output current AC 50 Hz -
- Ampere
Max. output current AC 60 Hz -
- Ampere
Max. output current DC -
- Ampere
Max. input current AC 50 Hz -
- Ampere
Max. input current AC 60 Hz -
- Ampere
Type of output voltage -
UN
With bus coupler for modular station connection -
Degree of protection (IP) -
IP65/IP67
Number of interfaces PROFINET -
2
Performance level acc. EN ISO 13849-1 -
Level e
Type of electric connection -
Plug-in connection
Degree of protection (IP rating) -
IP65/IP67
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Bus coupler for modular station connection available -
Depth -
65 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible -
Height -
130 Millimetre
Input voltage at DC -
20.4 Volt
Max. input current DC -
0.4 Ampere
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of slots -
16
Rail mounting possible -
Suitable for safety functions -
Supporting protocol for MODBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
System accessory -
Type of voltage (input voltage) -
DC
Wall mounting/direct mounting -
Width -
135 Millimetre
With pluggable modules, analogue I/O -
With pluggable modules, central modules -
With pluggable modules, communication modules -
With pluggable modules, digital I/O -
With pluggable modules, function and technology modules -
With pluggable modules, others -

Availability Available to order

POA
