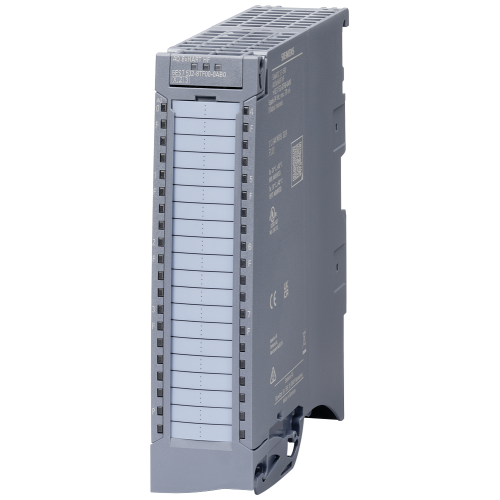

6ES75328TF000AB0

SIMATIC S7-1500 AQ 8xHART HF 35 mm Incl. power supply element, shield bracket, and shield terminal

Manufacturer's No: 6ES7532-8TF00-0AB0     Manufacturer: Siemens
SIMATIC S7-1500 AQ 8xHART HF 35 mm Incl. power supply element, shield bracket, and shield terminal

Availability On Request

£1,050.00
  • SIMATIC S7-1500 analog output module AQ 8xHART HF
  • 16-bit resolution with 0.2% accuracy
  • 8 channels in groups of 8 diagnostics
  • Includes substitute values, infeed element, shielding bracket, and shield terminal
  • Front connector (screw terminals or push-in) to be ordered separately

Mandatory additional product

Spare part



Product

Manufacturer Material ID -
6ES7532-8TF00-0AB0
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
UNSPSC -
32151705

Technical Specification

Analogue outputs configurable -
Depth -
129 Millimetre
Explosion safety category for dust -
None
Height -
147 Millimetre
Number of analogue inputs -
0
Number of analogue outputs -
8
Output signal configurable -
Output, current -
Resolution of the analogue outputs -
16 Bit
Width -
35 Millimetre

Availability On Request

£1,050.00
