6ES76154DF100AB0

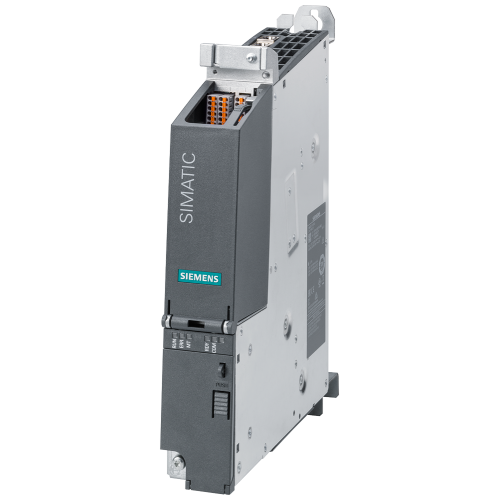

SIMATIC S7-1500 CPU 1504D TF Multi-axis system

Manufacturer's No: 6ES7615-4DF10-0AB0     Manufacturer: Siemens
SIMATIC S7-1500 CPU 1504D TF Multi-axis system

Availability Back Order

POA
  • Model: SIMATIC S7-1500 Drive Controller CPU 1504D TF
  • Integrated with SINAMICS S120
  • Interfaces: 12 DI, 16 DI/DQ, 4 DRIVE-CLiQ, 3 PROFINET ports (3+1+1), 1 PROFIBUS
  • Requires SIMATIC Memory Card
  • Supported firmware versions: SIMATIC S7-1500 FW up to V3.1 (technology version up to V8.0), SINAMICS FW V5.2/V5.2 SP3


Product

Manufacturer Material ID -
6ES7615-4DF10-0AB0
Net Weight -
3.00kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
UNSPSC -
43201503

Technical Specification

Processing time (1K, binary operation) -
- Millisecond
Category according to EN 954-1 -
UN
Max. number of time switches -
-
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Number of interfaces PROFINET -
3
Performance level acc. EN ISO 13849-1 -
Level d
STATFLAG -
B
Performance level acc. to EN ISO 13849-1 -
Level d
SIL according to IEC 61508 -
2
Depth -
226 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height -
300 Millimetre
Memory size -
10000 kiloByte (1000 Byte)
Model -
Modular
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
28
Number of digital outputs -
16
Number of HW-interfaces industrial Ethernet -
3
Number of HW-interfaces other -
4
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
3
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Suitable for safety functions -
Supply voltage DC -
20.4 Volt
Supporting protocol for MODBUS -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
System accessory -
Type of memory -
Other
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
50 Millimetre

Availability Back Order

POA
