6ES79240BF200BC0

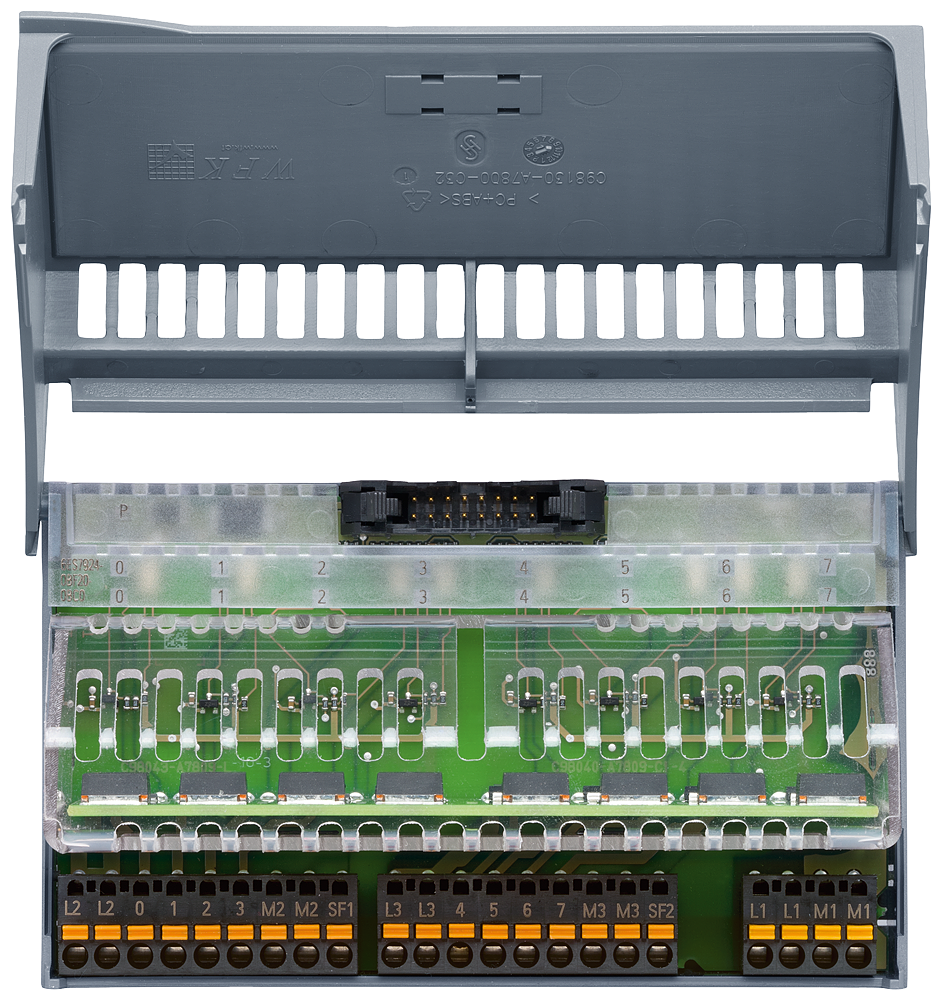

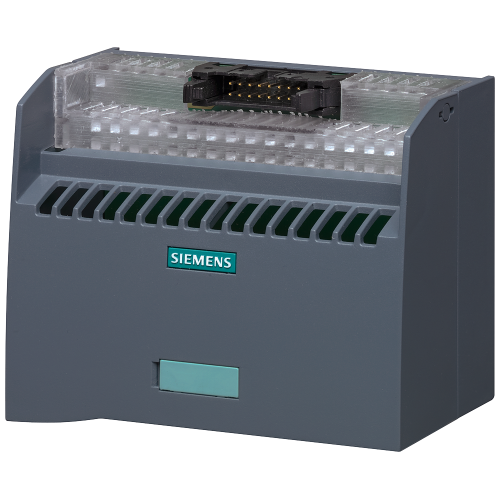

Connection module dig. IOs, TPOo optocoupler module, 8 O, push in, LED

Manufacturer's No: 6ES7924-0BF20-0BC0     Manufacturer: Siemens
Connection module dig. IOs, TPOo optocoupler module, 8 O, push in, LED

Availability On Request

£204.00
  • Connection module TPOO with optocoupler
  • Input: 24 VDC
  • Output: 8 NO contacts, 24V DC/4A
  • Overload and short circuit-proof
  • LED indicator
  • Push-in terminal
  • VPE: 1 unit
  • 16 pole IDC connector for cable


Product

Manufacturer Material ID -
6ES7924-0BF20-0BC0
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
RO
RoHs Compliance -
Yes
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section solid-core -
- Square millimetre
Mounting method -
DIN rail (top hat rail) 35 mm
Length -
76 Millimetre
Operation temperature -
0 Degrees celsius
Width/grid dimension -
130 Millimetre
Height at lowest possible mounting height -
60 Millimetre
Type of electrical connection 2 -
Insulation piercing connection
LED switching for -
PNP
Connection position -
Above
Colour -
Grey
Colour lamp -
Other
Connectable conductor cross section fine-strand with cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Inflammability class of insulation material acc. with UL94 -
V1
Material insulation body -
Other
Number of clamp positions per level -
1
Number of levels -
1
Operating temperature -
0 Degrees celsius
Rated current In -
1 Ampere
Rated voltage -
24 Volt
Type of electrical connection 1 -
Plug-in connection
With power supply function -
