6FB11030AT134MB1

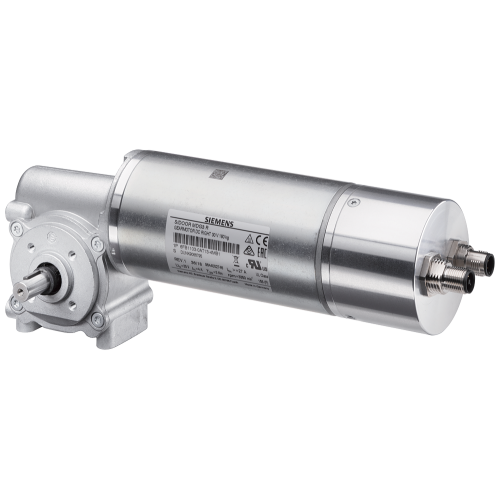

SIDOOR MDG3 R Right gearbox output with groove and feather key For controllers ATD4xxW

Manufacturer's No: 6FB1103-0AT13-4MB1     Manufacturer: Siemens
SIDOOR MDG3 R Right gearbox output with groove and feather key For controllers ATD4xxW

Availability On Request

£527.18
  • SIDOOR MDG3 R geared motor
  • Shaft on the right with slot and fitted key A3x5 according to DIN 6888
  • Maximum load capacity: 180 kg
  • IP56 rated for dust and water resistance
  • 2x M12 connectors for separate motor connection cable
  • Operating voltage: 30 V DC
  • Operating temperature range: -20 to +50 °C


Product

Manufacturer Material ID -
6FB1103-0AT13-4MB1
Net Weight -
3.00kg

Additional Product Information

Commodity Code -
85013100
Country of Origin -
DE
UNSPSC -
26101205

Technical Specification

Max. door/gate weight -
- Kilogram
Degree of protection (IP) -
UN
Supply voltage DC -
- Volt
Pinion position -
Right
Diameter -
63 Millimetre
Gear ratio -
15
Height -
98 Millimetre
Length -
264 Millimetre
Max. speed -
0.65 Metre per second
Nominal operating current -
4 Ampere

Availability On Request

£527.18
