6FB11030AT143MC2

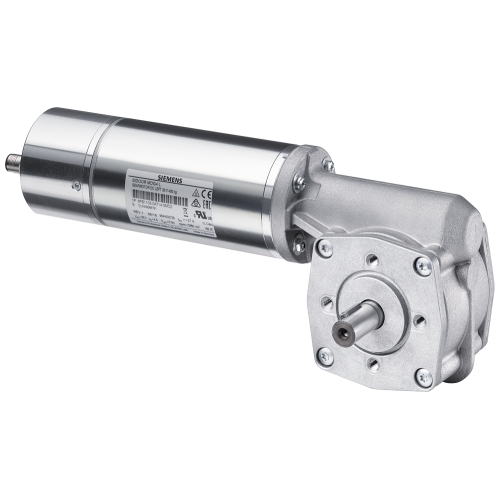

SIDOOR MDG4 L Left gearbox output with groove and feather key For controllers ATD4xxW

Manufacturer's No: 6FB1103-0AT14-3MC2     Manufacturer: Siemens
SIDOOR MDG4 L Left gearbox output with groove and feather key For controllers ATD4xxW

Availability On Request

£749.66
  • SIDOOR MDG4 L geared motor
  • Shaft on the left with slot and fitted key A5x5 according to DIN 6885
  • Maximum load capacity: 400 kg
  • IP56 rated for protection
  • 2x M12 connectors for separate motor connection cable
  • Operating voltage: 30 V DC
  • Operating temperature range: -20 to +50°C


Product

Manufacturer Material ID -
6FB1103-0AT14-3MC2
Net Weight -
3.80kg

Additional Product Information

Commodity Code -
85013100
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
UNSPSC -
26101205

Technical Specification

Max. door/gate weight -
- Kilogram
Degree of protection (IP) -
UN
Supply voltage DC -
- Volt
Pinion position -
Left
Diameter -
63 Millimetre
Gear ratio -
15
Height -
115 Millimetre
Length -
303 Millimetre
Max. speed -
0.75 Metre per second
Nominal operating current -
4 Ampere
