6FB11110AT113AT0

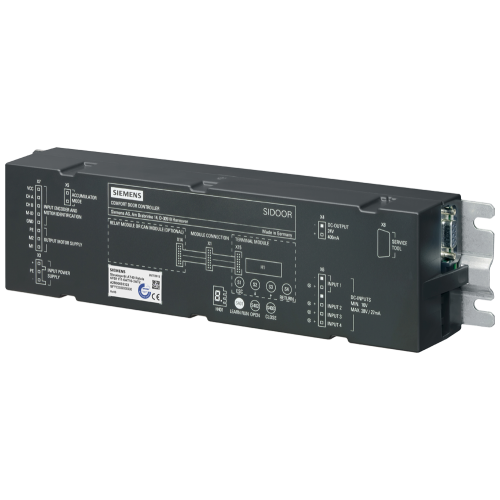

SIDOOR AT40 BASIC Control device for Elevator doors, horizontal, up to 600 kg door weight, 36VDC, 1*RS485, 4*DI, 1*24VDC Out, -20

Manufacturer's No: 6FB1111-0AT11-3AT0     Manufacturer: Siemens
SIDOOR AT40 BASIC Control device for Elevator doors, horizontal, up to 600 kg door weight, 36VDC, 1*RS485, 4*DI, 1*24VDC Out, -20 to +50°C

Availability On Request

POA

This product has been superseded by

6FB11110AT103AT2

Please check compatibility before purchasing.

  • Control device for elevator doors
  • Suitable for horizontal doors up to 600 kg
  • Operating voltage: 36VDC
  • Interfaces: 1RS485, 4DI, 1*24VDC Out
  • Temperature range: -20 to +50°C
  • Discontinued since: 01/10/22
  • Successor model: 6FB1111-0AT10-3AT2

Follow-up article



Product

Manufacturer Material ID -
6FB1111-0AT11-3AT0
Net Weight -
0.74kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121552

Technical Specification

Nominal electricity consumption -
- Ampere
Type of power supply -
UN
Rated frequency -
- Hertz
Supply voltage AC -
- Volt
Supply voltage DC -
- Volt
Serial interface -
Degree of protection (IP) -
IP20
Control exits -
Control inputs -
Degree of protection (IP rating) -
IP20
Input current per DC input -
0.009 Ampere
Input voltage per DC input -
10 Volt
Manufacturer specific system components required -
Max. door/gate weight -
600 Kilogram
Max. door/gate width -
5000 Millimetre
Max. opening cycles per hour -
0.05
Max. output current DC -
0.4 Ampere
Model -
Control device
Nominal power consumption -
80 Watt

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

6FB11110AT103AT2

Please check compatibility before purchasing.
