6FB11210BM133AT2

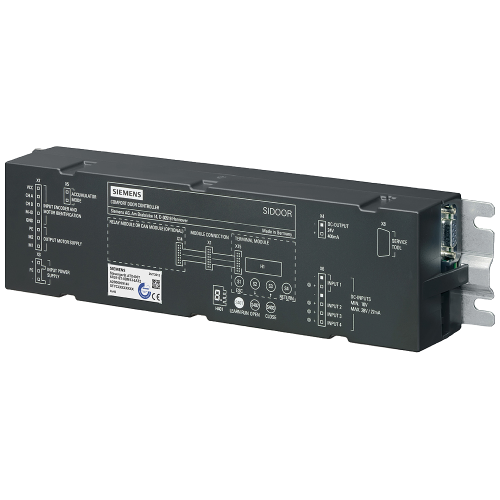

SIDOOR ATD400T relay With relay outputs For interior railway doors

Manufacturer's No: 6FB1121-0BM13-3AT2     Manufacturer: Siemens
SIDOOR ATD400T relay With relay outputs For interior railway doors

Availability On Request

£610.78
  • SIDOOR ATD400T Relay Control Unit for interior train doors
  • Supports up to 180kg door weight
  • Voltage: 36VDC
  • Interfaces: 1RS485, 4DI, 3Relay, 124VDC out
  • Operating temperature: -25°C to +70°C
  • Compliant with EN 50155, EN 50121-3-2, EN 45545-2, EN 61373


Product

Manufacturer Material ID -
6FB1121-0BM13-3AT2
Net Weight -
0.72kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

Nominal electricity consumption -
- Ampere
Rated frequency -
- Hertz
Supply voltage AC -
- Volt
Degree of protection (IP) -
IP20
Serial interface -
Type of power supply -
Internal
Control exits -
Control inputs -
Degree of protection (IP rating) -
IP20
Input current per DC input -
0.009 Ampere
Input voltage per DC input -
10 Volt
Manufacturer specific system components required -
Max. door/gate weight -
180 Kilogram
Max. door/gate width -
4000 Millimetre
Max. opening cycles per hour -
0.05
Max. output current DC -
0.4 Ampere
Model -
Control device
Nominal power consumption -
80 Watt
Supply voltage DC -
24 Volt

Availability On Request

£610.78
