6FB12035AT007MP0

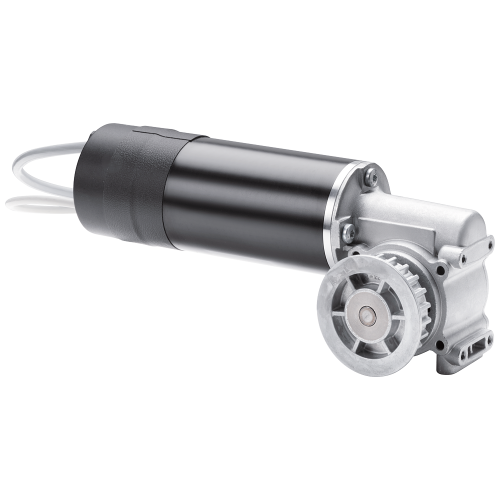

SIDOOR MEG251 L Geared motor, pinion left hand, max. 250kg door weight, cable length 1,5m, 24VDC, -20 - +50 degree Celsius

Manufacturer's No: 6FB1203-5AT00-7MP0     Manufacturer: Siemens
SIDOOR MEG251 L Geared motor, pinion left hand, max. 250kg door weight, cable length 1,5m, 24VDC, -20 - +50 degree Celsius

Availability On Request

£593.26
  • Geared motor model: SIDOOR MEG251 L
  • Pinion orientation: Left hand
  • Max. door weight capacity: 250 kg
  • Cable length: 1.5 meters
  • Operating voltage: 24VDC
  • Temperature range: -20 to +50 degrees Celsius


Product

Manufacturer Material ID -
6FB1203-5AT00-7MP0
Net Weight -
3.04kg

Additional Product Information

Commodity Code -
85013100
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
26101205

Technical Specification

Degree of protection (IP) -
UN
Supply voltage DC -
- Volt
Diameter -
62 Millimetre
Gear ratio -
15
Height -
100 Millimetre
Length -
249 Millimetre
Max. door/gate weight -
250 Kilogram
Max. speed -
0.75 Metre per second
Nominal operating current -
6.8 Ampere
Pinion position -
Left

Availability On Request

£593.26
