6FB12035AT017MP0

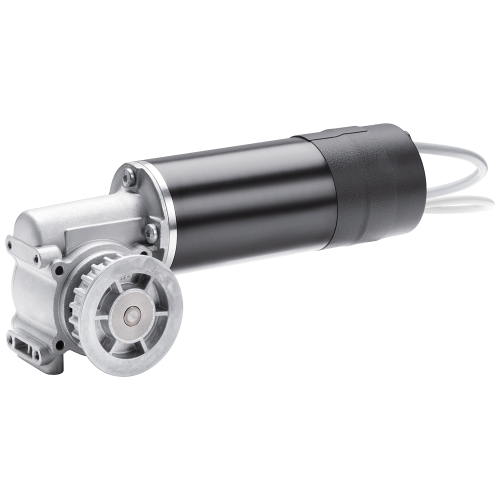

SIDOOR MEG251 R Geared motor, pinion right hand, max. 250kg door weight, cable length 1,5m, 24VDC, -20 - +50 degree Celsius

Manufacturer's No: 6FB1203-5AT01-7MP0     Manufacturer: Siemens
SIDOOR MEG251 R Geared motor, pinion right hand, max. 250kg door weight, cable length 1,5m, 24VDC, -20 - +50 degree Celsius

Availability On Request

£593.26
  • Geared motor: SIDOOR MEG251 R
  • Pinion: Right hand
  • Max. door weight: 250 kg
  • Cable length: 1.5 m
  • Voltage: 24 VDC
  • Operating temperature: -20 to +50 degrees Celsius


Product

Manufacturer Material ID -
6FB1203-5AT01-7MP0
Net Weight -
3.04kg

Additional Product Information

Commodity Code -
85013100
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
26101205

Technical Specification

Degree of protection (IP) -
UN
Supply voltage DC -
- Volt
Diameter -
62 Millimetre
Gear ratio -
15
Height -
100 Millimetre
Length -
249 Millimetre
Max. door/gate weight -
250 Kilogram
Max. speed -
0.75 Metre per second
Nominal operating current -
6.8 Ampere
Pinion position -
Right
