6FB12313BM117AT0

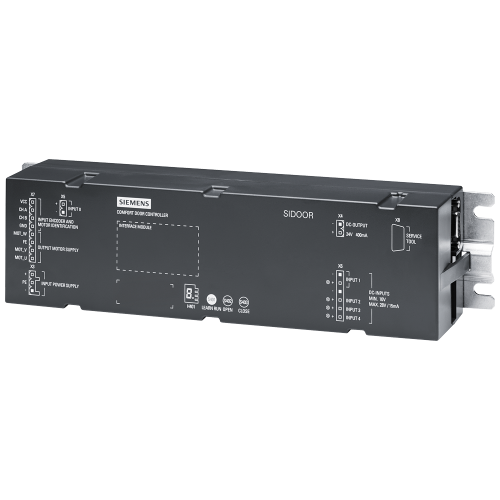

SIDOOR ATE531S With PROFINET interface, protective coating, and temperature extension For platform screen doors

Manufacturer's No: 6FB1231-3BM11-7AT0     Manufacturer: Siemens
SIDOOR ATE531S With PROFINET interface, protective coating, and temperature extension For platform screen doors

Availability On Request

£2,097.35
  • Control device for platform doors
  • Suitable for doors up to 280 kg
  • Includes protective coating and fan
  • Operating temperature range: -25°C to +70°C
  • Connectivity: 1 x RS485, 5 x DI, 2 x DO
  • PROFINET IO Conformance Class C
  • Features 2 x RJ45 sockets


Product

Manufacturer Material ID -
6FB1231-3BM11-7AT0
Net Weight -
0.68kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

Nominal electricity consumption -
- Ampere
Rated frequency -
- Hertz
Supply voltage AC -
- Volt
Degree of protection (IP) -
IP20
Serial interface -
Type of power supply -
External
Control exits -
Control inputs -
Degree of protection (IP rating) -
IP20
Input current per DC input -
0.003 Ampere
Input voltage per DC input -
10 Volt
Manufacturer specific system components required -
Max. door/gate weight -
280 Kilogram
Max. door/gate width -
5000 Millimetre
Max. opening cycles per hour -
0.05
Max. output current DC -
0.4 Ampere
Model -
Control device
Nominal power consumption -
80 Watt
Supply voltage DC -
36 Volt

Availability On Request

£2,097.35
