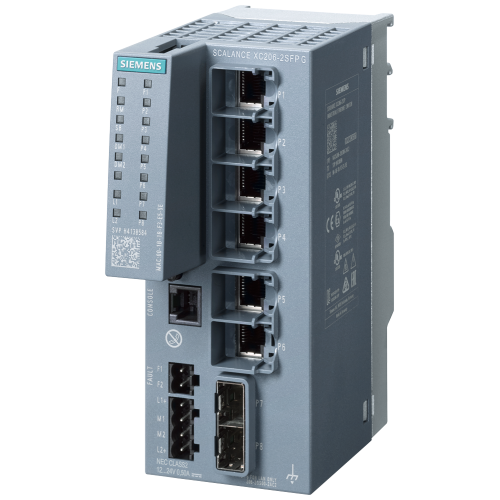

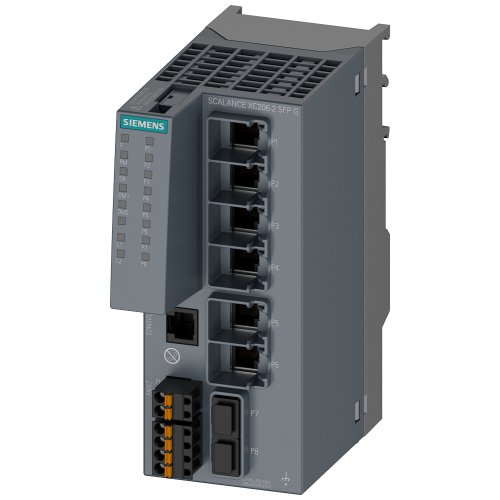

6GK52062GS002TC2

SCALANCE XC206-2SFP G (E/IP), managed Layer 2 switch, 6x RJ45, 2x SFP, DEF: E/IP

Manufacturer's No: 6GK5206-2GS00-2TC2     Manufacturer: Siemens
SCALANCE XC206-2SFP G (E/IP), managed Layer 2 switch, 6x RJ45, 2x SFP, DEF: E/IP

View 3D

Availability Back Order

£922.09
  • SCALANCE XC206-2SFP G (E/IP) manageable Layer 2 IE switch
  • IEC 62443-4-2 certified
  • 6x 10/100/1000 Mbps RJ45 ports
  • 2x 1000 Mbps SFP ports
  • 1x console port
  • Diagnostics LED
  • Redundant power supply
  • Temperature range: -40°C to +70°C
  • Assembly options: DIN rail, S7 mounting rail, wall mount
  • Redundancy functions

Read more

  • Office features: RSTP, VLAN
  • PROFINET IO device
  • Ethernet/IP-compliant
  • C-PLUG slot
  • Default EtherNet/IP
  • IEEE 1588v2 PTP

Accessories

Product video


Product

Manufacturer Material ID -
6GK5206-2GS00-2TC2
Net Weight -
0.52kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5A991X
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

Number of ports 100 Mbps SC -
-
Number of ports 1000 Mbps RJ45 -
-
Number of ports 100 Mbps ST -
-
Number of ports 10/100 Mbps RJ45 -
-
Number of ports 1000 Mbps SC (SX) -
-
Number of ports 1000 Mbps SC (LX) -
-
Number of module slots -
-
Number of ports 10/100 Mbps M12 -
-
Number of ports 10/100/1000 Mbps RJ45 -
-
Number of ports 1000 Mbps GBIC -
-
Number of ports 1000 Mbps Mini GBIC -
-
Number of combination-ports RJ45/Mini GBIC -
-
Number of other ports -
-
Number of ports 100/1000 Mbps Mini GBIC -
-
Power over Ethernet -
UN
Number of ports PoE -
-
Max. PoE power -
- Watt
Number of ports 1000 Mbps POF -
-
Number of max. stackable switches -
0
Degree of protection (IP) -
IP20
Mounting method -
DIN rail (top hat rail)
Number of maximum stackable switches -
0
Number of ports 10 Gbps Mini GBIC -
0
Number of ports 100 Mbps POF -
0
Number of ports 10 Gbps RJ45 -
0
Number of ports 40 Gbps Mini GBIC -
0
Number of ports 100 Gbps Mini GBIC -
0
Degree of protection (IP rating) -
IP20
Depth -
125 Millimetre
Height -
147 Millimetre
Manageable -
Width -
60 Millimetre

Availability Back Order

£922.09
