6GK55520AR002HR2

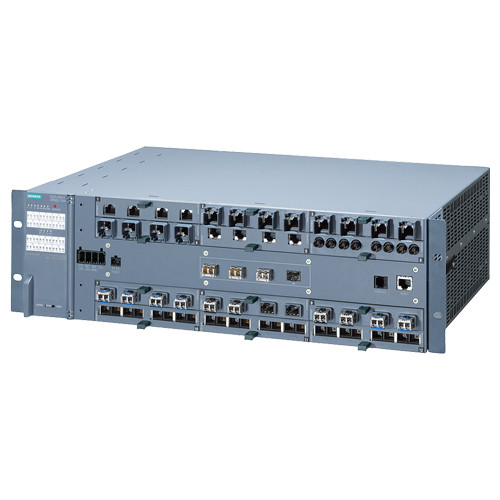

SCALANCE XR552-12M; managed IE switch, 19" rack; 4x 1000/10000 Mbit/s SFP+; 12x 100/1000 Mbit/s 4-port media modules, electri

Manufacturer's No: 6GK5552-0AR00-2HR2     Manufacturer: Siemens
SCALANCE XR552-12M; managed IE switch, 19" rack; 4x 1000/10000 Mbit/s SFP+; 12x 100/1000 Mbit/s 4-port media modules, electrical, electrical PoE or optical; LED diagnostics; error signaling contact; S

Availability On Request

£7,660.70
  • SCALANCE XR552-12M managed IE switch
  • 4x 1000/10000 Mbit/s SFP+
  • 12x 100/1000 Mbit/s 4-port media modules (electrical, electrical PoE, or optical)
  • LED diagnostics and error signaling contact
  • Select/set pushbutton for configuration
  • PROFINET IO device and network management
  • Integrated redundancy manager
  • Layer 3 integrated
  • Office features: RSTP, VLAN, IGMP
  • C-plug included in scope of delivery

Read more

  • Ports located at the back

Accessories



Product

Manufacturer Material ID -
6GK5552-0AR00-2HR2
Net Weight -
11.50kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 9N9999
RoHs Compliance -
Yes
UNSPSC -
43222612

Technical Specification

Number of ports 100 Mbps SC -
-
Number of ports 100 Mbps ST -
-
Number of max. stackable switches -
-
Number of ports PoE -
-
Number of ports 1000 Mbps POF -
-
Mounting method -
482.6 mm (19 inch) mounting
Number of ports 1000 Mbps RJ45 -
0
Ethernet -
Number of ports 10/100 Mbps RJ45 -
0
Number of ports 1000 Mbps SC (SX) -
48
Number of ports 1000 Mbps SC (LX) -
48
Number of module slots -
12
Number of ports 10/100 Mbps M12 -
0
Number of ports 10/100/1000 Mbps RJ45 -
48
Number of ports 1000 Mbps GBIC -
0
Number of ports 1000 Mbps Mini GBIC -
52
Number of combination-ports RJ45/Mini GBIC -
0
Layer 2 -
Layer 3 -
Degree of protection (IP) -
IP20
Number of other ports -
0
Number of ports 100/1000 Mbps Mini GBIC -
52
Number of ports 10 Gbps Mini GBIC -
4
Power over Ethernet -
Other
Number of ports 100 Mbps POF -
0
Number of ports 40 Gbps Mini GBIC -
0
Number of ports 100 Gbps Mini GBIC -
0
Number of ports 10 Gbps RJ45 -
0
Degree of protection (IP rating) -
IP20
Depth -
305 Millimetre
Height -
130.8 Millimetre
Manageable -
Max. PoE power -
30 Watt
Width -
449 Millimetre

Availability On Request

£7,660.70
