6GK57481FC000AB0

product announced for discontinuation; IWLAN client, SCALANCE W748-1 RJ45, 1 radio, 3 R-SMA antenna port, iFeatures support via KE

Manufacturer's No: 6GK5748-1FC00-0AB0     Manufacturer: Siemens
product announced for discontinuation; IWLAN client, SCALANCE W748-1 RJ45, 1 radio, 3 R-SMA antenna port, iFeatures support via KEY-PLUG, IEEE 802....

Availability On Request

£1,051.00
  • IWLAN client SCALANCE W748-1 RJ45
  • 1 radio with 3 R-SMA antenna ports
  • Supports iFeatures via KEY-PLUG
  • IEEE 802.11a/b/g/h/n, 2.4/5GHz
  • Data rate of 450 Mbps per radio
  • 1x RJ45 port with max. 1 Gbps
  • Power over Ethernet (PoE) support
  • Redundant 24 V DC power supply
  • IP30 protection rating
  • Operating temperature range: -20 to +60 °C

Read more

  • WPA2/802.11i/e security protocols
  • Signaling contact for national approvals
  • Certification ID: RAPN-W1-RJ-E3
  • Includes MPCIE-R1-ABGN-U3
  • Comes with manuals on CD-ROM in German/English
  • Includes 2x joint blocks
  • Designed for operation in the USA

Accessories



Product

Manufacturer Material ID -
6GK5748-1FC00-0AB0
Net Weight -
1.91kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
43222640

Technical Specification

Radio protocol -
UN
Number of ports 1000 Mbps Mini GBIC -
-
Encoding -
UN
Number of AP's supported -
-
Colour -
Other
Wall mounting -
Connection for external antenna -
Degree of protection (IP) -
Other
Number of ports 10 Gbps Mini GBIC -
0
Firewall throughput -
0 Gigabit per second
Bridge function -
Degree of protection (IP rating) -
IP30

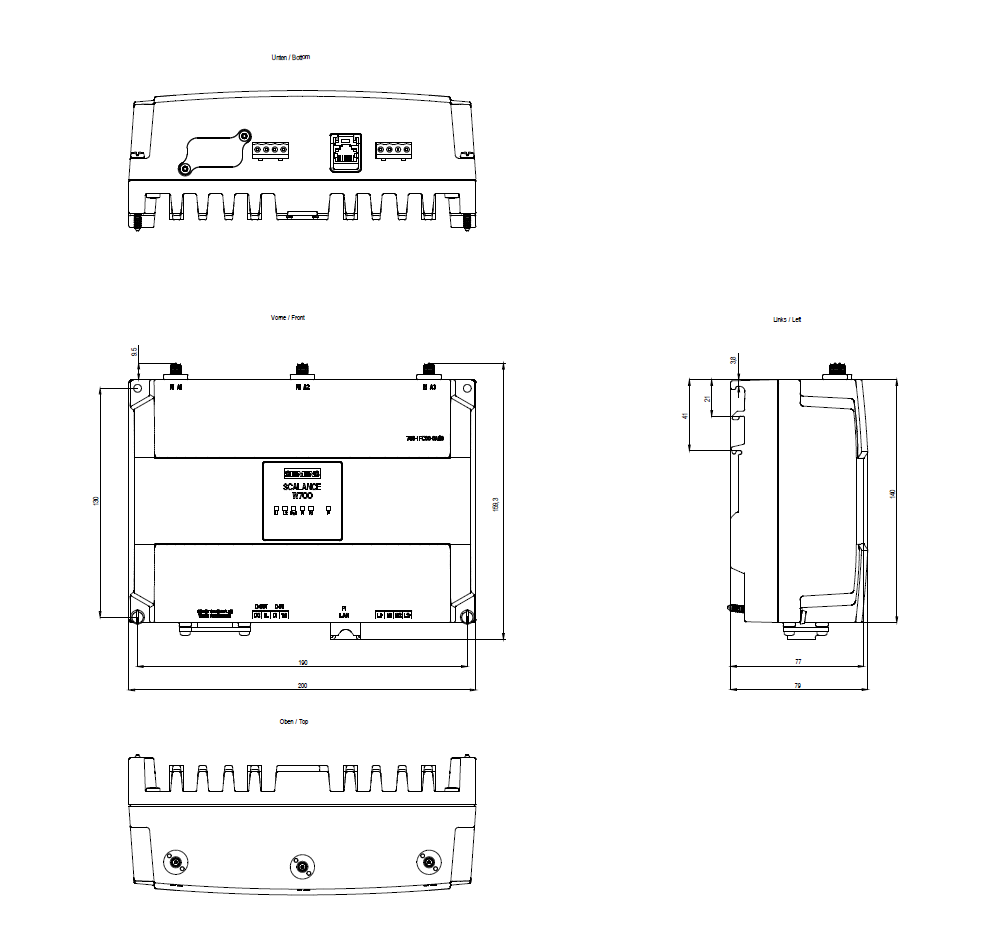

Depth -
79 Millimetre
Ethernet -
Frequency band -
2.4 GHz and 5 GHz
Height -
158 Millimetre
Managed -
Max. data transmission rate -
450 Megabit per second
Number of ports 10/100 Mbps LAN -
1
Number of ports 10/100/1000 Mbps LAN -
1
Number of users -
8
Power over Ethernet -
Suitable for wall mounting -
Width -
200 Millimetre

Availability On Request

£1,051.00
