6GK57882HY010AA0

IWLAN AP, 1733 Mbps, 2x M12, 2x wireless, 8x internal antennas, CLP

Manufacturer's No: 6GK5788-2HY01-0AA0     Manufacturer: Siemens
IWLAN AP, 1733 Mbps, 2x M12, 2x wireless, 8x internal antennas, CLP

Availability On Request

POA

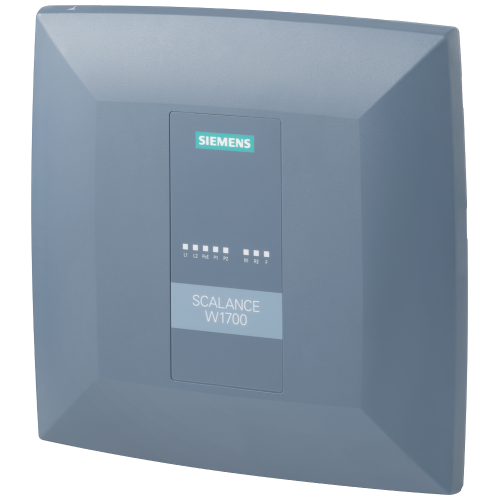

  • IWLAN access point SCALANCE W1788-2IA M12
  • 2 radios with 8 internal antennas
  • Supports iFeatures via CLP
  • IEEE 802.11a/b/g/h/n/ac, operates at 2.4/5GHz
  • Data rate of 1733 Mbit/s per radio
  • 2x M12 connectors with max. 1 Gbit/s
  • Power over Ethernet (PoE) support
  • Redundant power supply of 24 V DC
  • M12 A-coded IP65 rated for harsh environments (-20°C to +70°C)
  • CLP slot for additional features

Read more

  • WPA2/802.11i/e security protocols
  • Includes MPCIE-R1-ABGNAC-U4
  • Comes with 1x joint block in the package
  • Suitable for use outside of USA/Israel, observe national approvals
  • CERT ID: RAPAC-W2-M12-I4

Accessories



Product

Manufacturer Material ID -
6GK5788-2HY01-0AA0
Net Weight -
2.65kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

Radio protocol -
UN
Number of ports 1000 Mbps Mini GBIC -
-
Encoding -
UN
Number of AP's supported -
-
Colour -
Other
Wall mounting -
Degree of protection (IP) -
IP65
Number of ports 10 Gbps Mini GBIC -
0
Firewall throughput -
0 Gigabit per second
Bridge function -
Degree of protection (IP rating) -
IP65
Depth -
80 Millimetre
Ethernet -
Frequency band -
2.4 GHz and 5 GHz
Height -
258 Millimetre
Managed -
Max. data transmission rate -
1733 Megabit per second
Number of ports 10/100 Mbps LAN -
2
Number of ports 10/100/1000 Mbps LAN -
2
Number of users -
28
Power over Ethernet -
Repeater function -
Suitable for wall mounting -
Width -
258 Millimetre

Availability On Request

POA
