6GK57954MR000AA6

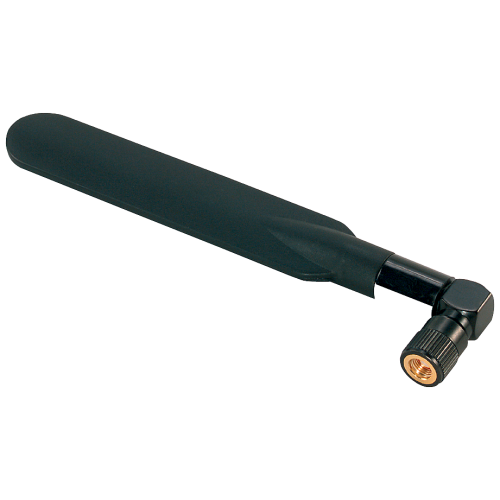

ANT795-4MR IWLAN antenna with omnidirectional Characteristic, incl. R-SMA connector: 3/5 dBi, IP65 (

Manufacturer's No: 6GK5795-4MR00-0AA6     Manufacturer: Siemens
ANT795-4MR IWLAN antenna with omnidirectional Characteristic, incl. R-SMA connector: 3/5 dBi, IP65 (

Availability On Request

POA
  • ANT795-4MR IWLAN omnidirectional antenna
  • R-SMA connector with 3/5 dBi gain
  • IP65 rated for outdoor use
  • Frequency bands: 2.4GHz and 5GHz
  • Operating temperature range: -20 to +60°C
  • National approvals
  • Direct assembly on W-700
  • Includes German/English operating instructions
  • Manuals on CD-ROM in English/German


Product

Manufacturer Material ID -
6GK5795-4MR00-0AA6
Net Weight -
0.62kg

Additional Product Information

Commodity Code -
85177019
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
UNSPSC -
43191501

Technical Specification

Ambient temperature during operating -
-20 Degrees celsius
Degree of protection (IP rating) -
IP65

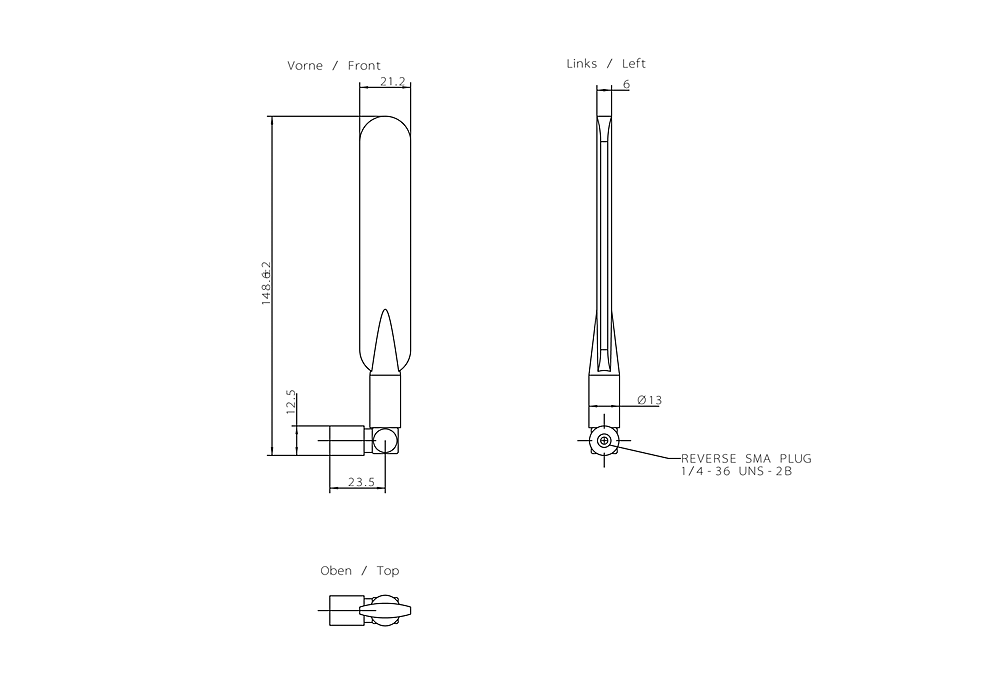

Depth -
13 Millimetre
Height -
148 Millimetre
Indoor -
Max. transmission range -
100 Metre
Width -
35 Millimetre
